Straight SMA coaxial connector for 0 to 18 GHz operation, featuring a brass body with gold plating and a copper center contact also plated in gold. This free-hanging, cable-mount connector utilizes a PTFE dielectric and Teflon insulation, offering a 50 Ohm impedance and a maximum operating temperature of 165°C. Designed for solder termination, it supports up to 500 mating cycles and has a depth of 6.35mm and length of 12.7mm.
Frequency18GHz
PackageSMA
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 132104 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 6.35mm |
| Dielectric Material | PTFE |
| Frequency | 18GHz |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Teflon |
| Length | 12.7mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
| Weight | 0.126986oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 132104 Datasheet
Download the complete datasheet for Amphenol 132104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

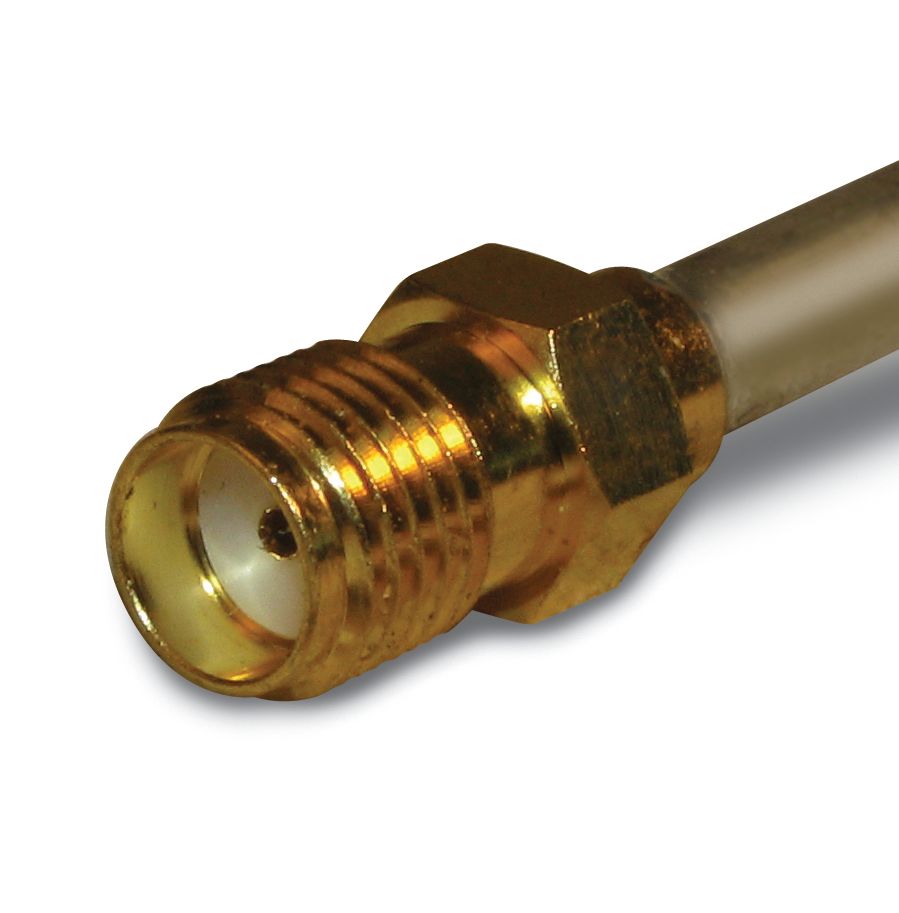

Product Images
