Technical Specifications
Amphenol 134105 technical specifications.
General
| Body Material | Brass |
| Body Plating | Bronze |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 17.96mm |
| Mating Cycles | 100 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Polarity | Standard |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 134105 Datasheet
Download the complete datasheet for Amphenol 134105 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

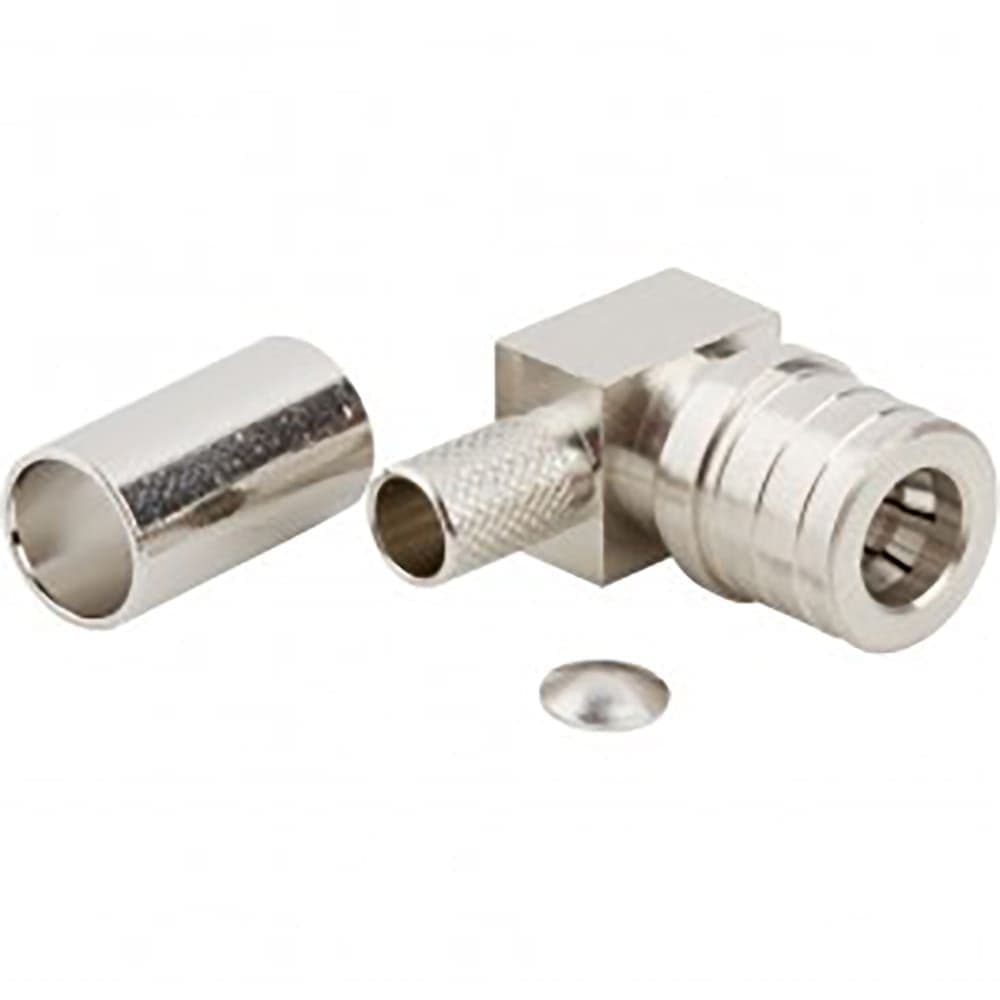

Product Images
