RF cable assembly featuring SMA plug connectors on both ends, designed for coaxial and RF applications. This male-to-male assembly utilizes RG174 cable with a 50-ohm impedance and a maximum frequency of 3GHz. The straight SMA connectors are terminated via crimp, offering a reliable connection for signal transmission. The cable extends to a length of 180 inches.
Frequency3GHz
PackageSMA
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 135101-02-180 technical specifications.
General
| Package/Case | SMA |
| Connector Type A | SMA, Plug |
| Connector Type B | SMA, Plug |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 50R |
| Length | 180inch |
| Max Frequency | 3GHz |
| Package Quantity | 1 |
| Packaging | Bulk |
| Polarity | Normal |
| Radiation Hardening | No |
| Series | SMA |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 135101-02-180 Datasheet
Download the complete datasheet for Amphenol 135101-02-180 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

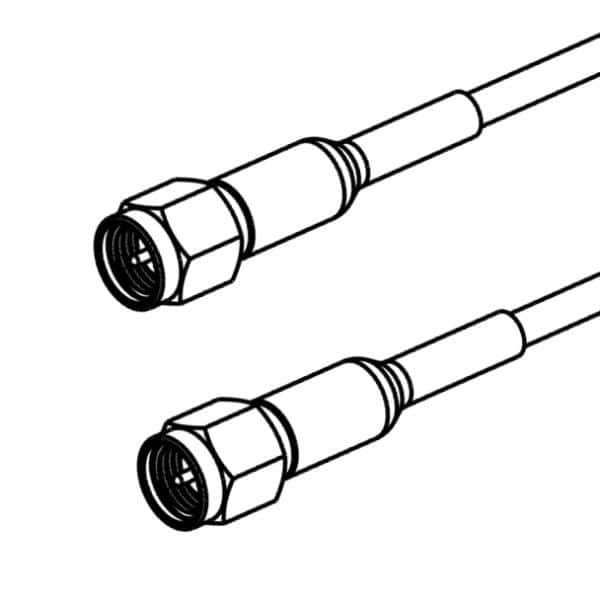

Product Images
