60-conductor, 28 AWG flat ribbon cable featuring a 1.27mm pitch and a shielded construction. This cable utilizes copper conductors with a 7-strand configuration and offers a characteristic impedance of 50 Ohms, with an overall impedance of 70 Ohms. Rated for 300V, it operates within a temperature range of -40°C to 105°C and has a maximum current rating of 1A. The cable is insulated with PVC and jacketed in Polyvinyl, with a width of 3.06 inches.
Package100
Voltage300V
Capacitance131pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Amphenol 151-2831-060 technical specifications.
General
| Cable Pitch | 1.27mm |
| Capacitance | 131pF |
| Package/Case | 100 |
| Characteristic Impedance | 50R |
| Color | Black |
| Conductor Material | Copper |
| Impedance | 70R |
| Insulation Material | PVC |
| Jacket Material | Polyvinyl |
| Length | 100foot |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Conductors | 60 |
| Number of Cores | 60 |
| Number of Strands | 7 |
| Number of Ways | 60 |
| Package Quantity | 1 |
| Packaging | Spool |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Shielding | Shielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 3.06inch |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Flat, Ribbon, Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 151-2831-060 Datasheet
Download the complete datasheet for Amphenol 151-2831-060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

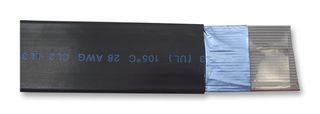

Product Images
