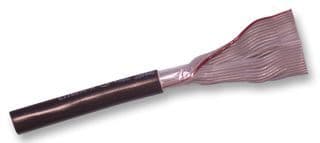

10-way, 28AWG round-to-flat ribbon cable with 1.27mm pitch, featuring copper conductors and tin plating. This unshielded cable offers a 1.3A current rating and 300V voltage rating, with a PVC insulation and polyvinyl jacket. Operating temperature range is -20°C to 105°C. Available in 100-foot length, it is RoHS compliant.
Package100
Voltage300V
Capacitance68.6pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Amphenol 159-2801-210 technical specifications.
General
Cable Pitch
1.27mm
Capacitance
68.6pF
Package/Case
100
Color
Black, Grey, Red
Conductor Material
Copper
Contact Plating
Tin
Current Rating
1.3A
First Conductor Mark
Red
Impedance
95R
Insulation Material
PVC
Jacket Material
Polyvinyl
Length
100foot
Max Current Rating
1.3A
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
10
Number of Cores
10
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Round N Flat®
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Wire/Cable Diameter
6.85mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, Flat, Flat Flex
Compliance
RoHS
Compliant
Datasheet
Amphenol 159-2801-210 Datasheet
Download the complete datasheet for Amphenol 159-2801-210 to view detailed technical specifications.
