28 AWG 20 conductor flat cable with 1.27mm pitch, featuring a shielded construction and twisted pair configuration. This cable utilizes copper conductors and PVC insulation, rated for 300V and a current of 1.3A, operating between -40°C and 105°C. Available on a 100-foot spool, it is UL and CSA approved.
Voltage300V
Capacitance25pF
Voltage Rating300V
Current Rating1.3A
Quick Jump:
Technical Specifications
Amphenol 159-2832-020 technical specifications.
General
| Approvals | UL, CSA |
| Cable Pitch | 1.27mm |
| Capacitance | 25pF |
| Color | Black, Multiple |
| Conductor Material | Copper |
| Current Rating | 1.3A |
| Impedance | 70R |
| Insulation Material | PVC |
| Jacket Material | Polyvinyl |
| Length | 100foot |
| Max Current Rating | 1.3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Conductors | 20 |
| Number of Cores | 20 |
| Package Quantity | 100 |
| Packaging | Spool |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | Twist N Flat® |
| Shielding | Shielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 0.003inch |
| Wire/Cable Diameter | 9.65mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Round, Twisted Pair, Flat, Flat Flex |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol 159-2832-020 Datasheet
Download the complete datasheet for Amphenol 159-2832-020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

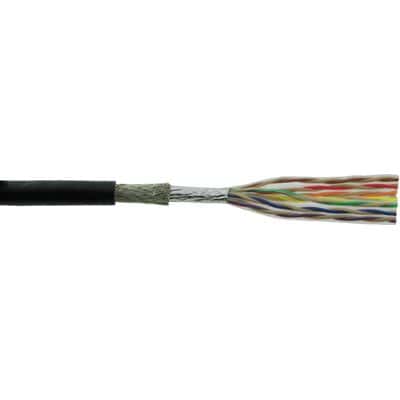

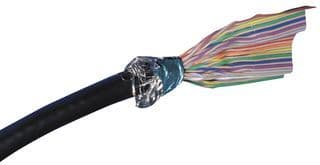

Product Images
