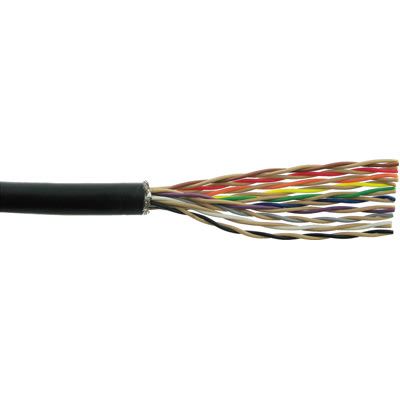

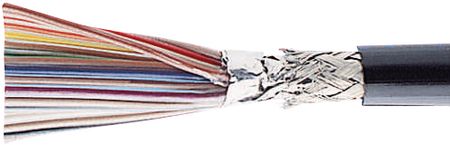

Shielded round flat cable featuring 40 conductors, each 28AWG with 7 strands of 36 AWG copper. This cable offers a 1.27mm pitch, 100 Ohm characteristic impedance, and a 300V voltage rating. Constructed with PVC insulation and a PO jacket, it operates between -65°C and 105°C and has a 1A current rating. Approvals include UL and CSA.
Voltage300V
Capacitance82pF
Voltage Rating300V
Current Rating1A
Quick Jump:
Technical Specifications
Amphenol 169-2832-040 technical specifications.
General
Approvals
UL, CSA
Cable Pitch
1.27mm
Capacitance
82pF
Characteristic Impedance
100R
Color
Black, Multiple
Conductor Material
Copper
Contact Plating
Tin
Current Rating
1A
Impedance
100R
Insulation Material
PVC
Jacket Material
PO
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Cable
Number of Conductors
40
Number of Cores
40
Number of Pairs
20
Number of Strands
7
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
Twist N Flat®
Shielding
Shielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Wire/Cable Diameter
9.9mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, Twisted Pair, Flat, Ribbon, Flat Flex
Compliance
RoHS
Compliant
Datasheet
Amphenol 169-2832-040 Datasheet
Download the complete datasheet for Amphenol 169-2832-040 to view detailed technical specifications.
