RF N Type connector, male, cable mount, straight orientation, featuring a brass body with bronze plating and a silver housing. This connector offers a 50 Ohm impedance and operates from 0 to 11 GHz, with a maximum frequency of 11 GHz. It utilizes a crimp termination with gold-plated brass contacts and a PTFE dielectric. Designed for 500 mating cycles, it has a voltage rating of 1.5kV and operates within a temperature range of -65°C to 165°C.
Frequency11GHz
Package200
Voltage Rating1.5kV
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 172214 technical specifications.
General
| Body Material | Brass |
| Body Plating | Bronze |
| Package/Case | 200 |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold, Nickel |
| Dielectric Material | PTFE |
| Frequency | 11GHz |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Inside Diameter | 3.3mm |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 26.5mm |
| Mating Cycles | 500 |
| Max Frequency | 11GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 11 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Crimp |
| Voltage Rating | 1.5kV |
| Weight | 1.116774oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 172214 Datasheet
Download the complete datasheet for Amphenol 172214 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

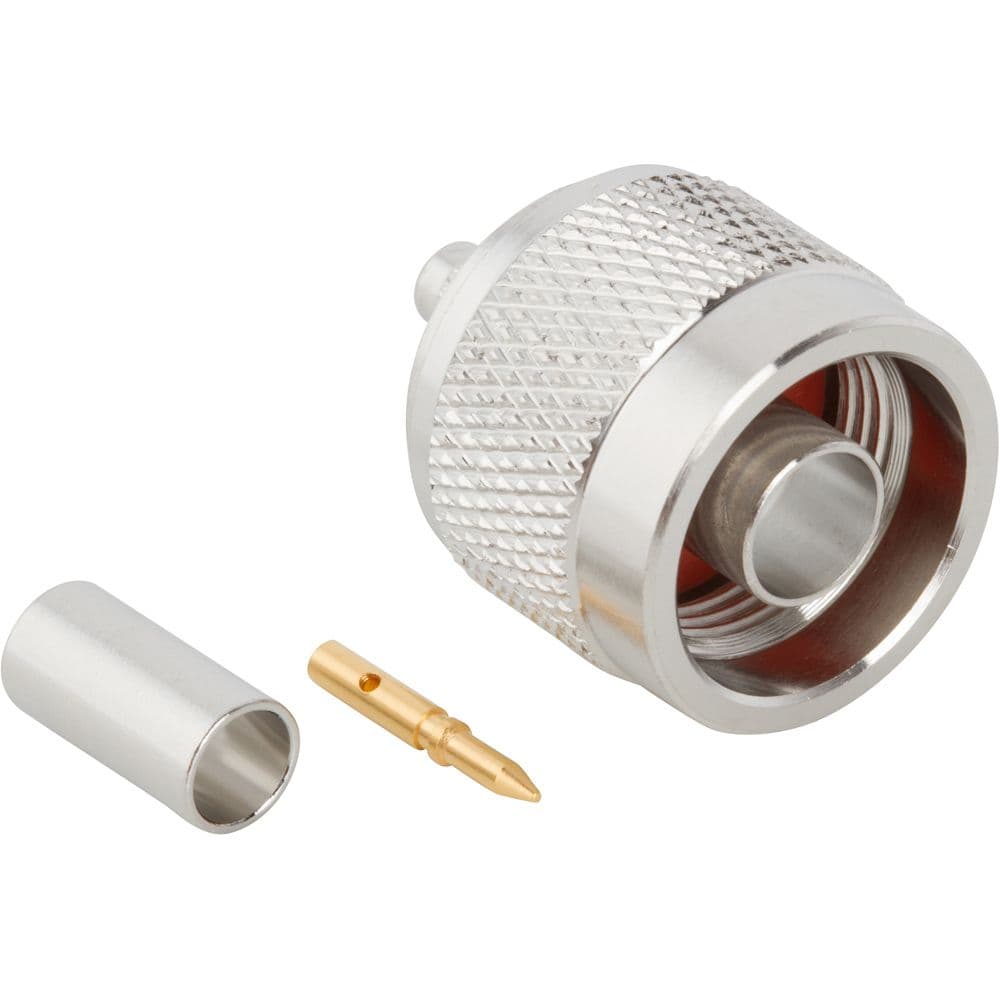

Product Images
