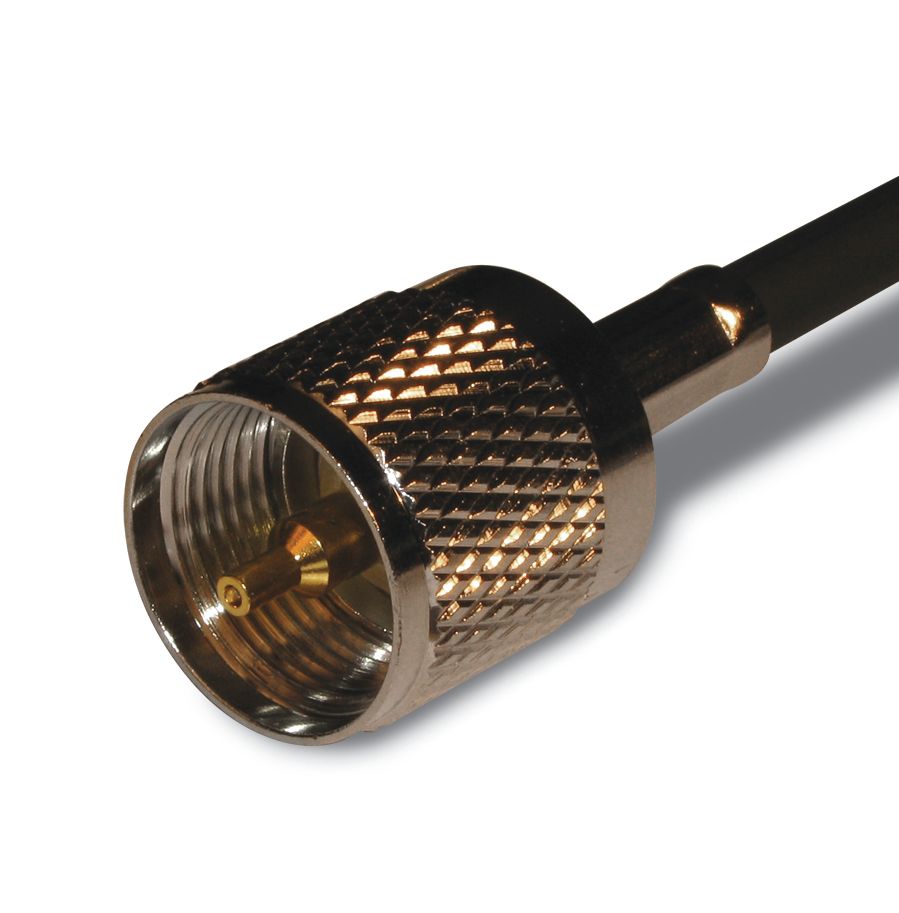

RF UHF Connector, Male, Cable Mount, Crimp Termination. Features brass body with nickel plating and a phenolic dielectric. Offers 50 Ohm impedance and operates up to 2.5GHz. Includes gold-plated brass center contact and polytetrafluoroethylene insulation. Rated for 500V and 500 mating cycles, with an operating temperature range of -65°C to 165°C.
Frequency2.5GHz
Package200
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 182100 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
200
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
Phenolic
Frequency
2.5GHz
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
30.6mm
Mating Cycles
500
Max Frequency
2.5GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 300 MHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
UHF
Termination
Crimp
Voltage Rating
500V
Weight
0.776027oz
Compliance
RoHS
Compliant
