191-2801-120

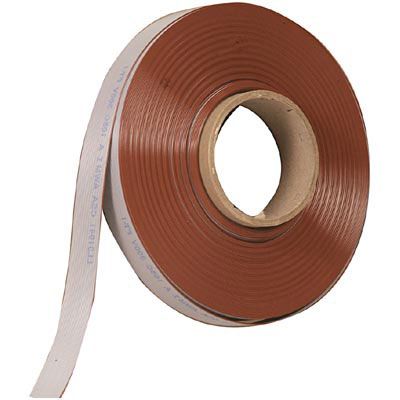

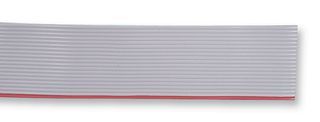

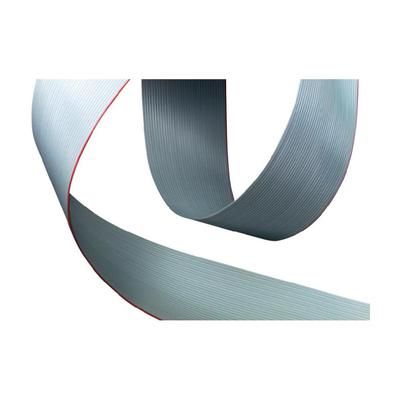

20-conductor, 28AWG flat ribbon cable featuring a 1.27mm pitch and PVC insulation. This unshielded cable is rated for 300V and 1A, constructed with stranded copper conductors and tin plating. It operates within a temperature range of -40°C to 105°C, offering a capacitance of 14pF and an impedance of 105 Ohms. The cable is supplied on a 100-foot spool, with a red first conductor marking and grey/red color scheme.
