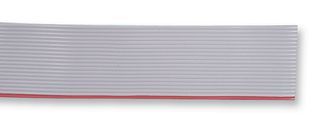

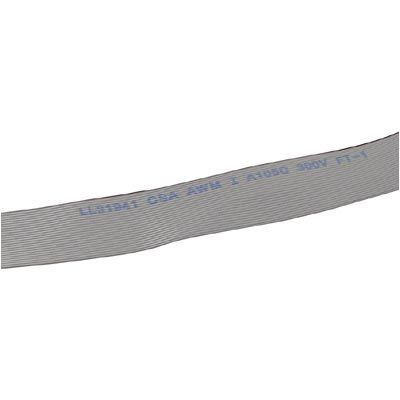

26-conductor flat ribbon cable featuring 28AWG stranded copper conductors with tin plating. This unshielded cable, constructed with PVC insulation and jacket, operates at 300V and has a 1A current rating. With a 1.27mm pitch and a capacitance of 14pF, it offers an impedance of 105 Ohms and a temperature range of -40°C to 105°C. Approvals include UL and CSA, with a first conductor marked in red.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol 191-2801-126 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Amphenol 191-2801-126 technical specifications.
| Approvals | UL, CSA |
| Cable Pitch | 1.27mm |
| Capacitance | 14pF |
| Package/Case | 100 |
| Color | Grey, Red |
| Conductor Material | Copper |
| Contact Plating | Tin |
| Current Rating | 1A |
| First Conductor Mark | Red |
| Halogen Free | Not Halogen Free |
| Height | 31.75mm |
| Impedance | 105R |
| Insulation Material | PVC |
| Jacket Material | Polyvinyl |
| Length | 100foot |
| Material | PVC |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Conductors | 26 |
| Number of Cores | 26 |
| Reach SVHC Compliant | No |
| Series | Spectra-Zip® |
| Shielding | Unshielded |
| Stranding | 7 x 36 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 33.02mm |
| Wire/Cable Gauge | 28AWG |
| Wire/Cable Type | Flat, Flat Flex, Ribbon |
| RoHS | Compliant |
