10-position, 10-contact terminal block with 5.08mm pitch, designed for right-angle cable mounting. Features screw termination and a 12A current rating per contact, supporting a maximum operating voltage of 300V. Constructed with bronze, steel, and copper alloy contacts with tin plating, housed in green. Operating temperature range is -40°C to 115°C, with wire gauge compatibility from 12AWG to 24AWG. RoHS compliant.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
Amphenol 20020007-H101B01LF technical specifications.
General
| Color | Green |
| Contact Material | Bronze, Steel, Copper Alloy |
| Contact Plating | Tin |
| Current | 12A |
| Current Rating | 12A |
| Depth | 18.2mm |
| Housing Color | Green |
| Length | 50.8mm |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 300V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Number of Positions Per Level | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 75 |
| Packaging | Bulk |
| Pitch | 0.2inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 01-508 |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 20020007-H101B01LF Datasheet
Download the complete datasheet for Amphenol 20020007-H101B01LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

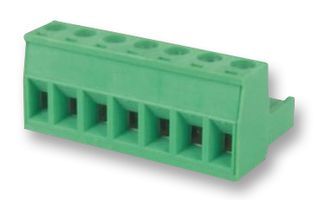

Product Images
