Straight RF connector adapter with N male to RP-SMA female interfaces, featuring a 50 Ohm impedance and a maximum frequency of 11 GHz. Constructed with a brass body plated in nickel, it utilizes gold-plated bronze center contacts and PTFE dielectric for reliable signal transmission. This free-hanging, lead-free, and RoHS-compliant adapter offers normal and reverse polarity.
Frequency11GHz
PackageSMA
MountingFree Hanging
PolarityNormal, Reverse
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Amphenol 242113RP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Amphenol 242113RP technical specifications.
General
| Adapter Style | Straight |
| Body Material | Brass |
| Body Plating | Nickel |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender Type A | Male |
| Gender Type B | Female |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 36.9mm |
| Max Frequency | 11GHz |
| Mount | Free Hanging |
| Orientation | Straight |
| Packaging | Bag |
| Plating | Nickel |
| Polarity | Normal, Reverse |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Weight | 1.470924oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 242113RP Datasheet
Download the complete datasheet for Amphenol 242113RP to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

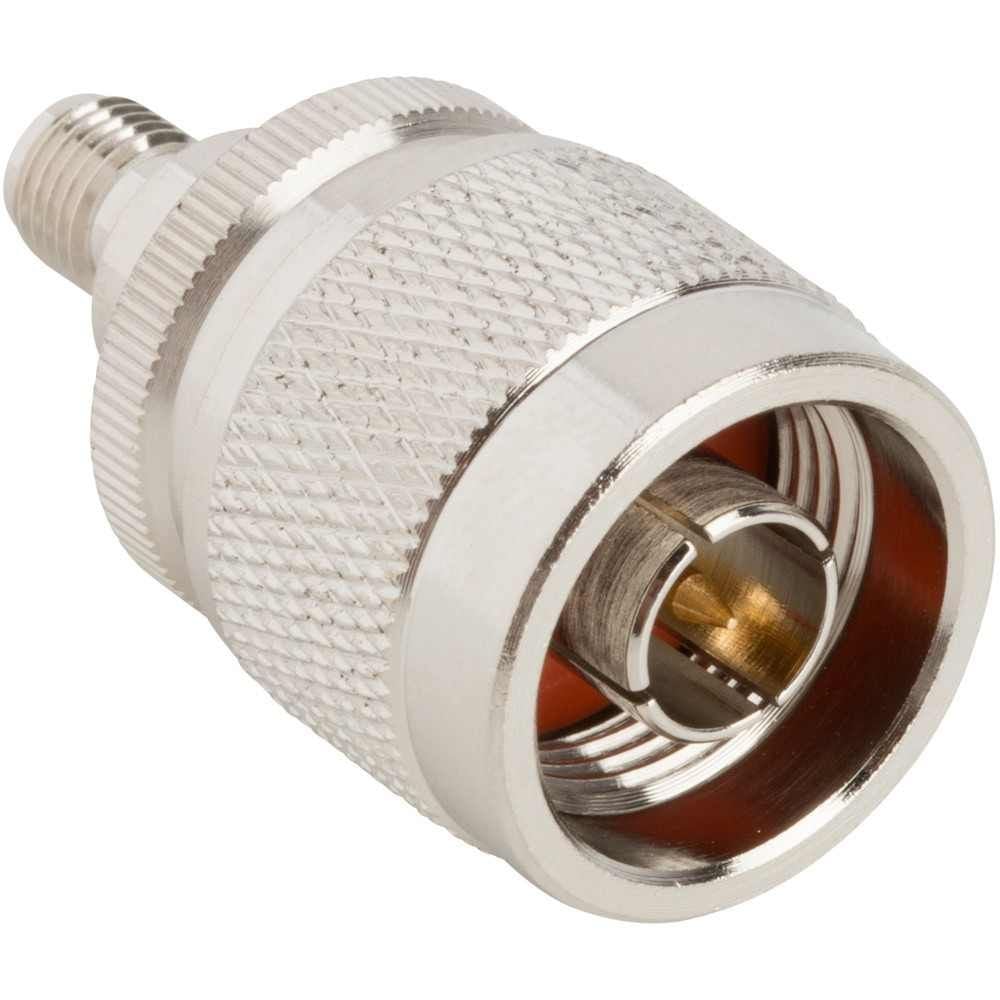

Product Images
