This RF coaxial connector features a straight, male plug configuration for cable mounting with a crimp termination. It offers a 50 Ohm impedance and operates from 0 to 4 GHz, with a maximum frequency of 4GHz. The connector boasts gold-plated brass contacts and a nickel-plated brass body, utilizing PTFE for its dielectric. Rated for 500V and 500 mating cycles, it operates within a temperature range of -65°C to 165°C.
Frequency4GHz
Package315
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 31-315 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
315
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
PTFE
Gender
Male
Housing Color
Silver
Impedance
50R
Insertion Loss
0.2dB
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Packaging
Bulk
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
500V
Weight
0.337572oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 31-315 Datasheet
Download the complete datasheet for Amphenol 31-315 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

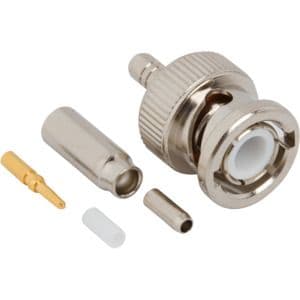

Product Images
