This RF BNC connector features a straight, male configuration for cable mounting with a crimp termination. It offers a 50-ohm impedance and operates up to 4GHz, with a maximum voltage rating of 500V and 500 mating cycles. The connector boasts a brass body with nickel plating, a gold-plated brass center contact, and a PTFE dielectric, ensuring reliable performance across a temperature range of -65°C to 165°C.
Frequency4GHz
Voltage Rating500V
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Amphenol 31-320 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Amphenol 31-320 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Insertion Loss | 0.2dB |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Operating Frequency | 0 to 4 Hz to GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Crimp |
| Voltage Rating | 500V |
| Weight | 0.000741oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 31-320 Datasheet
Download the complete datasheet for Amphenol 31-320 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

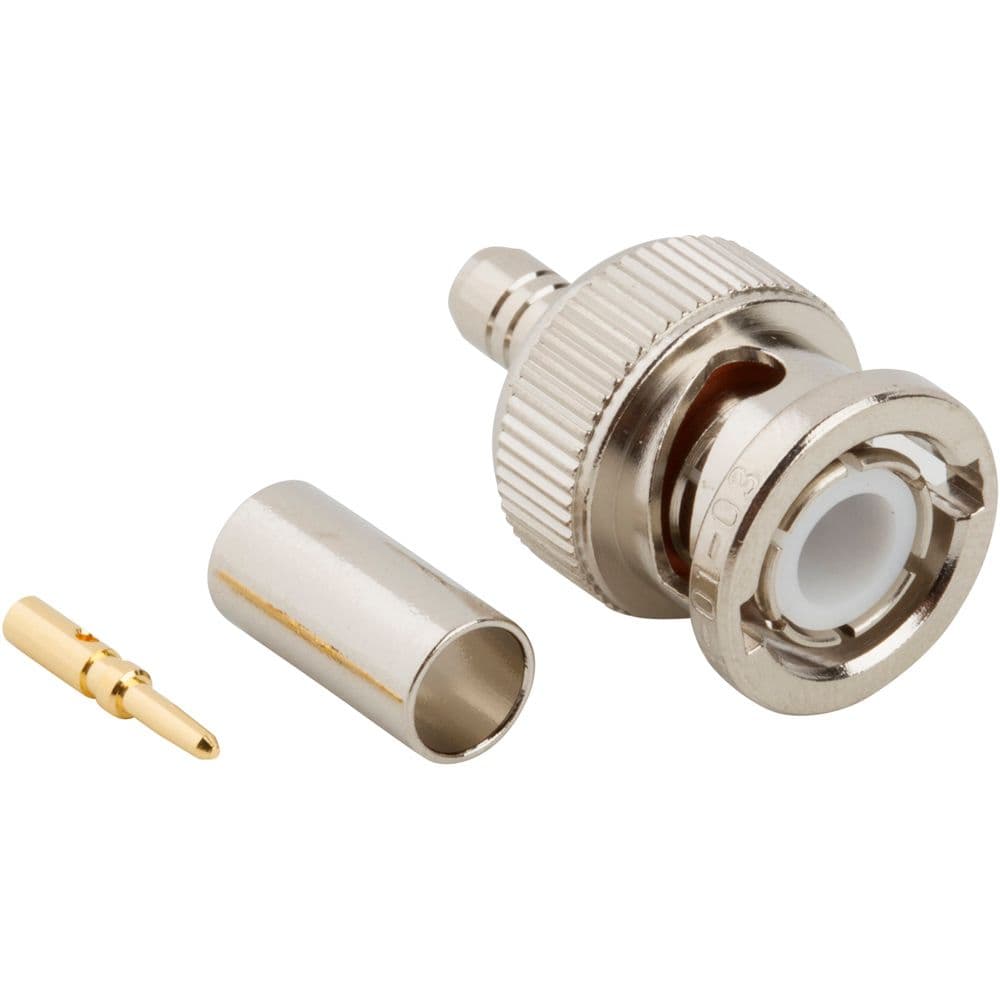

Product Images
