22-position, 2-row male pin header with 2mm pitch, straight orientation, and surface mount termination. Features gold-plated bronze and copper alloy contacts, a 2A current rating, and a 650V voltage rating. Operates across a temperature range of -55°C to 125°C. Housing is black, and the component is lead-free.
Voltage Rating650V
Current Rating2A
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Amphenol 57202-G52-11LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Amphenol 57202-G52-11LF technical specifications.
General
| Color | Black |
| Contact Material | Bronze, Copper Alloy |
| Contact Mating Length | 0.157inch |
| Contact Plating | Gold, GXT |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 4mm |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 22mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 650V |
| Mount | Surface Mount |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| Row Spacing | 0.079inch |
| Series | Minitek |
| Termination | Solder |
| Voltage Rating | 650V |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 57202-G52-11LF Datasheet
Download the complete datasheet for Amphenol 57202-G52-11LF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

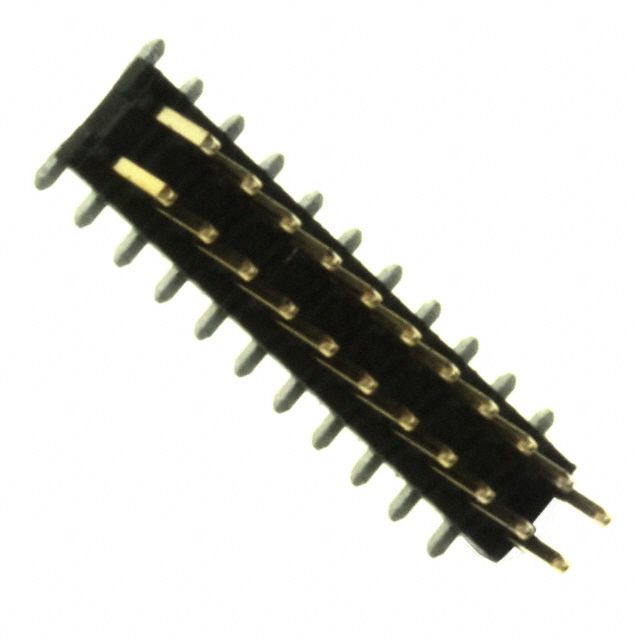

Product Images
