30-position, 1-row, 0.5mm pitch flexible flat cable (FFC) / flexible printed circuit (FPC) connector with ZIF/LIF actuation. Features gold-plated bronze contacts and a plastic, glass actuator. Surface mountable with straight solder termination, rated for 50V AC/DC and 0.5A current. Operating temperature range of -55°C to 85°C, with a UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol 62674-301121ALF technical specifications.
General
| Actuator Material | Plastic, Glass |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 2.95mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SFV-S |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 62674-301121ALF Datasheet
Download the complete datasheet for Amphenol 62674-301121ALF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

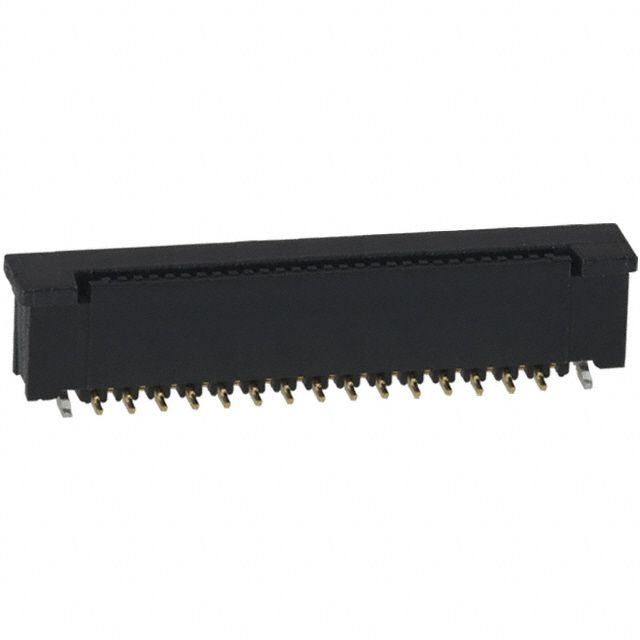

Product Images
