10-position, straight FFC/FPC connector with a 2.54mm pitch. Features a female gender and IDT termination for ribbon wire/cable. Constructed with a copper alloy contact material and tin plating, it offers a 2A current rating and a 500V voltage rating. Operating temperature range is -65°C to 105°C.
Voltage Rating500V
Current Rating2A
MountingCable
Quick Jump:
Technical Specifications
Amphenol 65801-010 technical specifications.
General
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
2A
Depth
15.49mm
Gender
Female
Housing Color
Blue
Lead Free
Contains Lead
Length
30.23mm
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
500V
Mount
Cable
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
No
Termination
IDT
Voltage Rating
500V
Wire/Cable Type
Ribbon
Compliance
RoHS
Not CompliantNo
Datasheet
Amphenol 65801-010 Datasheet
Download the complete datasheet for Amphenol 65801-010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

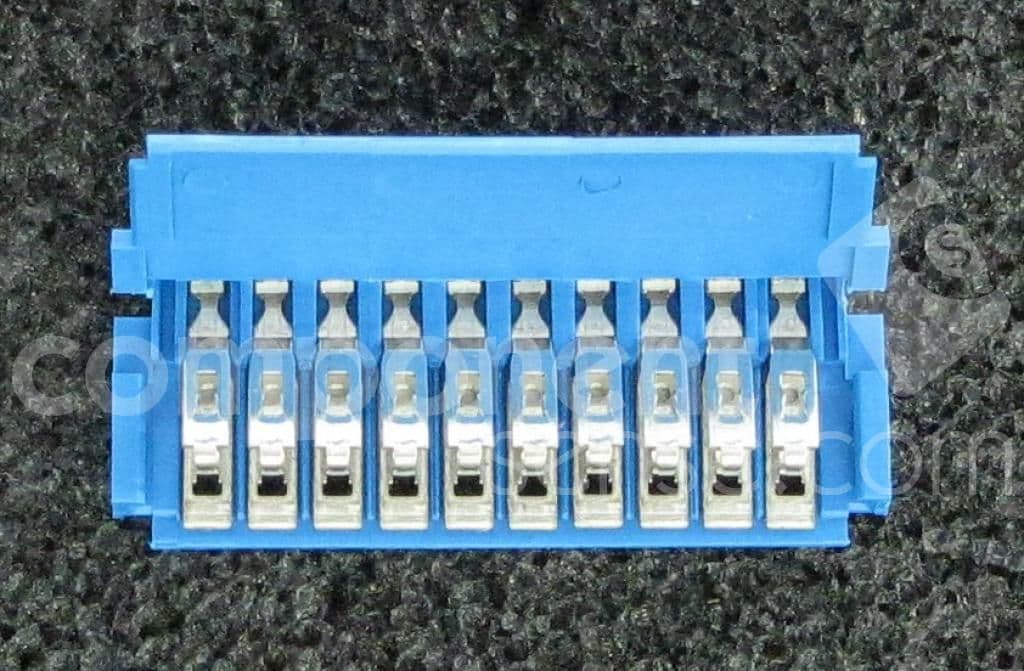

Product Images
