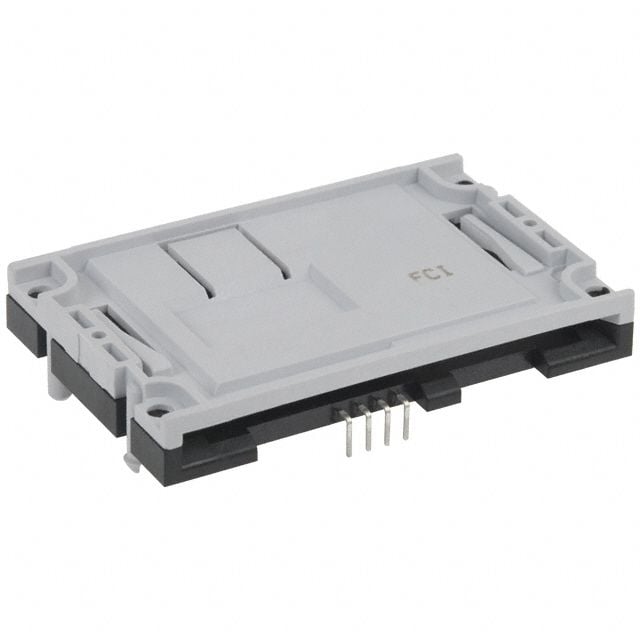

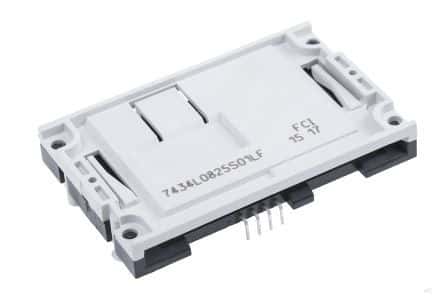

8-position, right-angle memory card socket with a 2.54mm pitch. Features copper alloy contacts with gold, GXT, and tin/lead plating, rated for 1A per contact and 300V AC. Constructed from UL94 V-0 rated black thermoplastic, this through-hole component offers 100,000 mating cycles and operates within a -40°C to 85°C temperature range. RoHS compliant and designed for PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol 7434L0825S01LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Copper Alloy |
| Contact Plating | Gold, GXT, Tin, Lead |
| Current Rating | 1A |
| Depth | 40mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 9mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 62mm |
| Material | Thermoplastic |
| Mating Cycles | 100000 |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | L08 |
| Termination | Solder |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 300V |
| Width | 62mm |
| RoHS | Compliant |
