75869-103LF

Datasheet

Amphenol

75869-103LF

Name: 75869-103LF Amphenol
Brand: Amphenol
SKU: 75869-103LF

2.54mm Header, 16 Pos, 2 Row, Male, Straight, 500V, 2A, Gold

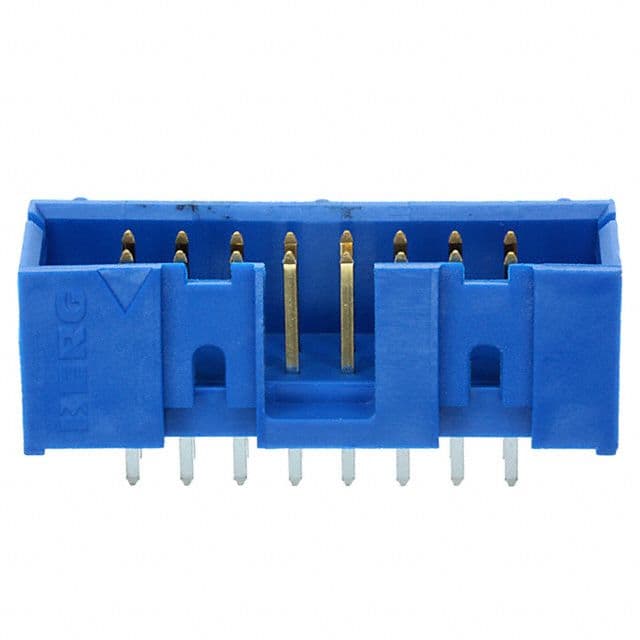

Board connector featuring 16 male pin contacts arranged in 2 rows with a 2.54mm (0.1 inch) pitch. This straight, through-hole mount receptacle offers a 1A current rating, 500V voltage rating, and a maximum operating temperature of 125°C. Contacts are plated with gold (GXT) for enhanced conductivity and durability, with a mating length of 0.236 inches. The blue insulator housing provides polarization and a UL94 V-0 flammability rating, ensuring reliable performance in demanding applications.

Voltage Rating500V

Current Rating1A

MountingThrough Hole, Board

Quick Jump:

Technical Specifications

Amphenol 75869-103LF technical specifications.

General

Additional Feature	POLARIZED
Color	Blue
Contact Gender	Male
Contact Material	Bronze, Copper Alloy, Brass
Contact Mating Length	0.236inch
Contact Plating	Gold, GXT
Contact Post Length	3.05mm
Contact Type	Male Pin
Current Rating	1A
Depth	9.55mm
DIN Conformance	No
Filter Feature	No
Flammability Rating	UL94 V-0
Gender	Male
Height	8.6mm
Housing Color	Blue
IEC Conformance	No
Lead Free	Lead Free
Lead Pitch	2.54mm
Length	70.23mm
Manufacturer Series	75869
Mating Cycles	250
Max Current Rating	2A
Max Operating Temperature	125°C
MIL Conformance	No
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	500V
Mixed Contacts	No
Mount	Through Hole, Board
Mounting Style	STRAIGHT
Number of Contacts	16
Number of Poles	16
Number of Positions	16
Number of Rows	2
Number of Rows Loaded	2
Option	General Purpose
Orientation	Straight
Package Quantity	21
Packaging	Rail/Tube
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	Quickie
Termination	Solder
Voltage Rating	500V
Width	9.55mm
