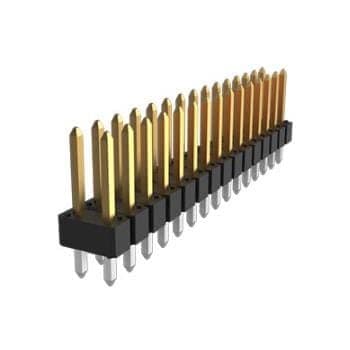

Unshrouded header with 48 positions and 2 rows, featuring a 2.54mm pitch and straight, top-entry orientation for through-hole mounting. Male pin contacts made of bronze with GXT gold plating offer a 3A current rating and 0.23-inch mating length. The black, UL94 V-0 rated housing operates from -65°C to 125°C and supports a 1.5kV voltage rating. This lead-free, RoHS-compliant component is supplied in bulk packaging.
Voltage Rating1.5kV
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol 77313-118-48LF technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
0.23inch
Contact Plating
Gold, GXT
Contact Post Length
3.05mm
Contact Type
Male Pin
Current Rating
3A
Depth
4.83mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
60.96mm
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
1.5kV
Mount
Through Hole
Number of Contacts
48
Number of Positions
48
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
BERGSTIK®, MezzSelect™, Basics+
Termination
Solder
Voltage Rating
1.5kV
Compliance
RoHS
Compliant
Datasheet
Amphenol 77313-118-48LF Datasheet
Download the complete datasheet for Amphenol 77313-118-48LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
