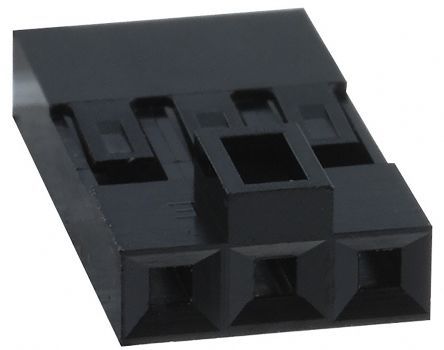

3-position, 1-row female receptacle connector with a 2.54mm pitch. Features a straight, free-hanging, cable mount orientation and crimp termination for wire gauges 36AWG to 22AWG. This black, lead-free connector offers a 1kV AC voltage rating and a locking mechanism.
Voltage Rating1kV
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 78211-003LF technical specifications.
General
| Color | Black |
| Contact Gender | Female |
| Contact Type | Female Socket |
| Depth | 13.84mm |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 7.62mm |
| Max Voltage Rating (AC) | 1kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mini-PV |
| Termination | Crimp |
| Voltage Rating | 1kV |
| Width | 13.85mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 36AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 78211-003LF Datasheet
Download the complete datasheet for Amphenol 78211-003LF to view detailed technical specifications.
