RF/Microwave Termination, 50 Ohm impedance, operating from 0 to 18GHz. Features a straight, male SMA connector with gold-plated copper contacts and a stainless steel body with gold plating. Designed for free-hanging, cable mounting with screw termination. Dielectric material is PTFE, with an operating temperature range of -55°C to 125°C. RoHS compliant.
Frequency18GHz
PackageSMA
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 8018-6005 technical specifications.
General
Body Material
Stainless Steel
Body Plating
Gold
Package/Case
SMA
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Gender
Male
Impedance
50R
Max Frequency
18GHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Operating Frequency
0 18GHz
Orientation
Straight
RoHS Compliant
Yes
Termination
Screw
Compliance
RoHS
Compliant
Datasheet
Amphenol 8018-6005 Datasheet
Download the complete datasheet for Amphenol 8018-6005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

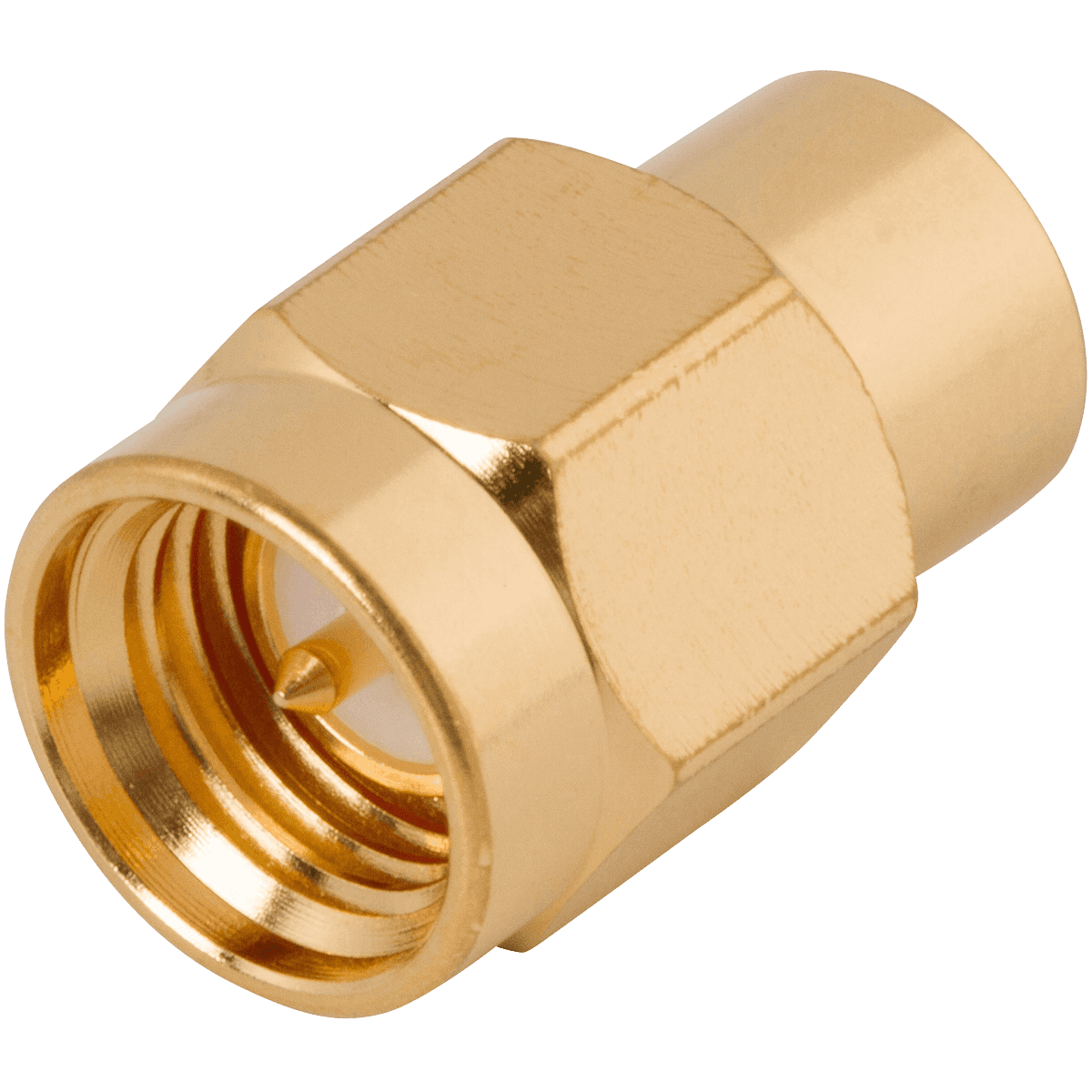

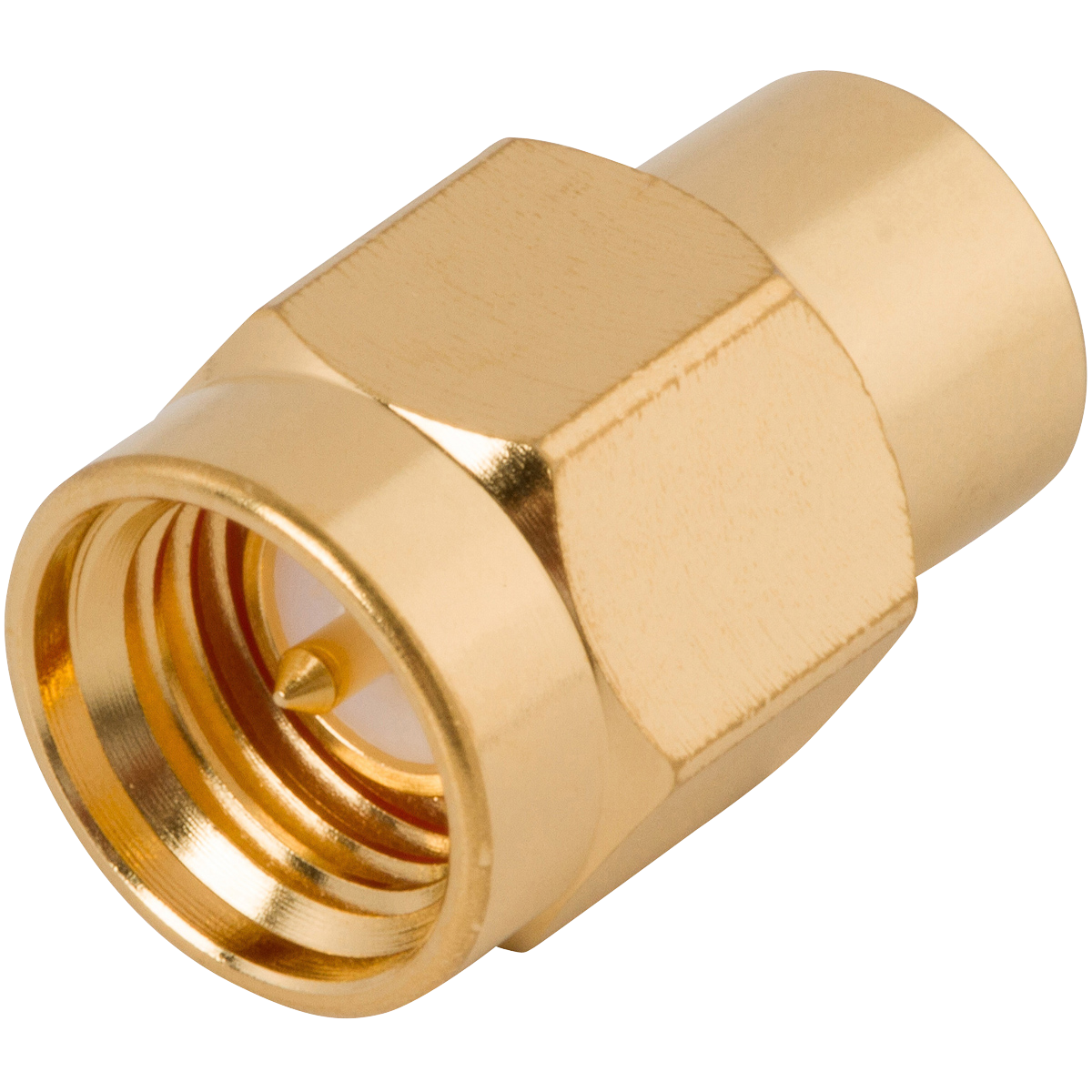

Product Images
