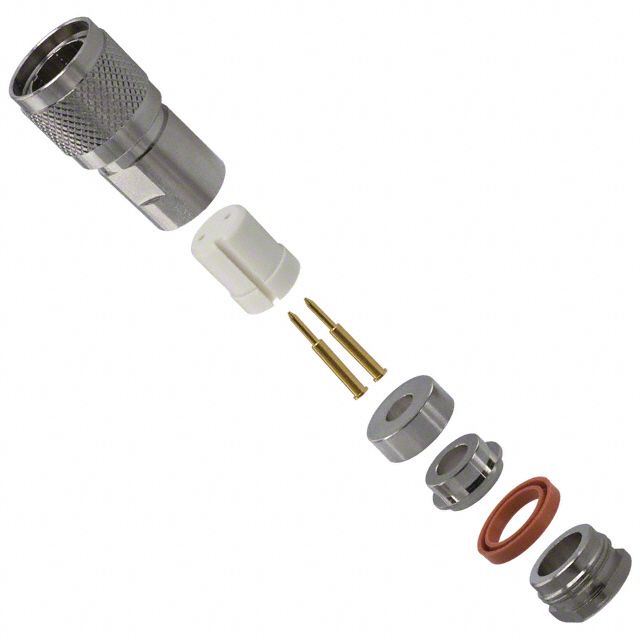

This female connector features a brass body with nickel plating and gold-plated contacts. It has a silver housing and is rated for 500V with an impedance of 95R. The connector operates over a temperature range of -65°C to 165°C and is suitable for use up to 500MHz. It is available in bulk packaging and can be mounted in various configurations, including free hanging, cable, and bulkhead.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol 82-5589-RFX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 22.5mm |
| Dielectric Material | PBT |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 95R |
| Insulation Material | Polybutylene |
| Lead Free | Lead Free |
| Length | 47.29mm |
| Mating Cycles | 500 |
| Max Frequency | 500MHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable, Bulkhead |
| Number of Ports | 1 |
| Operating Frequency | 0 to 200000000Hz |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Brass |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Termination | Crimp |
| Voltage Rating | 500V |
| RoHS | Not CompliantNo |
