37-position, 2-row female D-Subminiature connector with straight, panel-mount orientation and crimp termination. Features a 5A current rating, 1kV voltage rating, and a wide operating temperature range of -55°C to 125°C. Constructed with a metal steel body and thermoplastic dielectric, this connector supports 200 mating cycles and has a pitch of 2.76mm.
Voltage Rating1kV
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Amphenol 865637SLTLF technical specifications.
General
| Body Material | Metal, Steel |
| Contact Type | Signal |
| Current Rating | 5A |
| Depth | 17.44mm |
| Dielectric Material | Thermoplastic |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 68.94mm |
| Mating Cycles | 200 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 1kV |
| Mount | Panel |
| Number of Contacts | 37 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.76mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | 8656 |
| Termination | Crimp |
| Voltage Rating | 1kV |
| Width | 12.17mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 865637SLTLF Datasheet
Download the complete datasheet for Amphenol 865637SLTLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

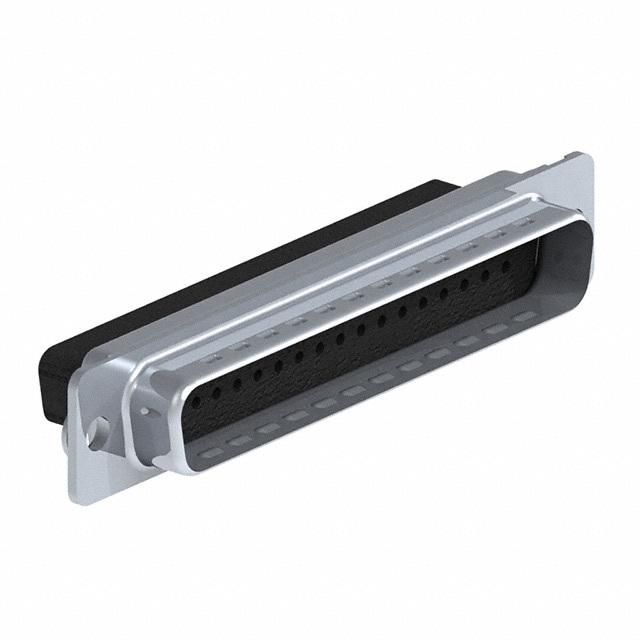

Product Images
