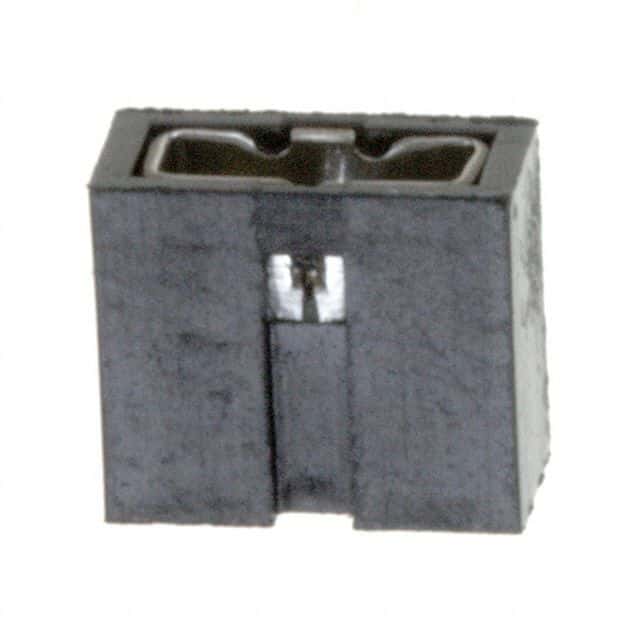

2-position, 2mm pitch female jumper header with straight, through-hole termination. Features copper alloy contacts with gold plating, a PBT/glass body, and a 1A current rating. This lead-free, RoHS-compliant component offers a 650V voltage rating and is designed for board-to-board applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol 86730-001LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Amphenol 86730-001LF technical specifications.
| Body Material | PBT, Glass |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Depth | 2mm |
| Height | 0.138inch |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Current Rating | 1A |
| Max Voltage Rating (AC) | 650V |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Minitek® MezzSelect™, Basics+ |
| Termination | Through Hole |
| Voltage Rating | 650V |
| RoHS | Compliant |
