30-position, 2-row female socket strip with 2.54mm pitch for board-to-board applications. Features gold-plated bronze contacts, a 3A current rating, and a 1kV AC voltage rating. Straight, surface-mount orientation with solder termination. Operating temperature range of -65°C to 125°C. Grey housing and 5.08mm depth.
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol 89898-315LF technical specifications.
General
| Color | Grey |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 5.08mm |
| Gender | Female |
| Housing Color | Grey |
| Length | 38.02mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 1kV |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | DUBOX™, MezzSelect™, Basics+ |
| Termination | Solder |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 89898-315LF Datasheet
Download the complete datasheet for Amphenol 89898-315LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

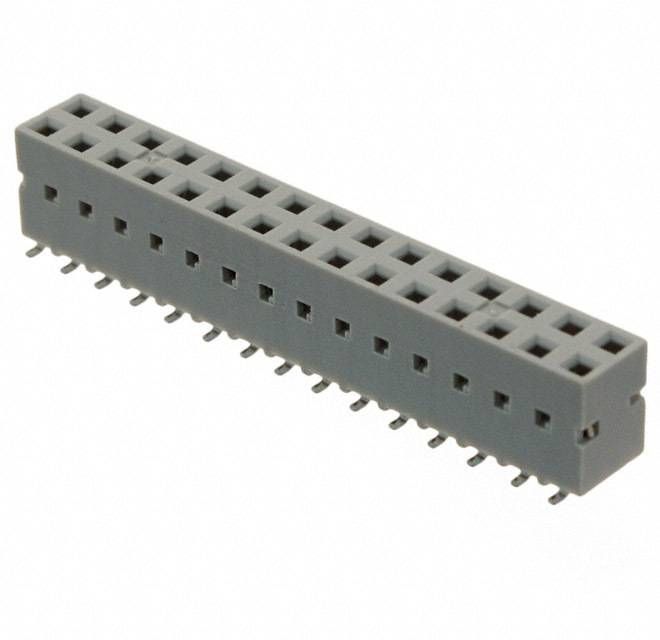

Product Images
