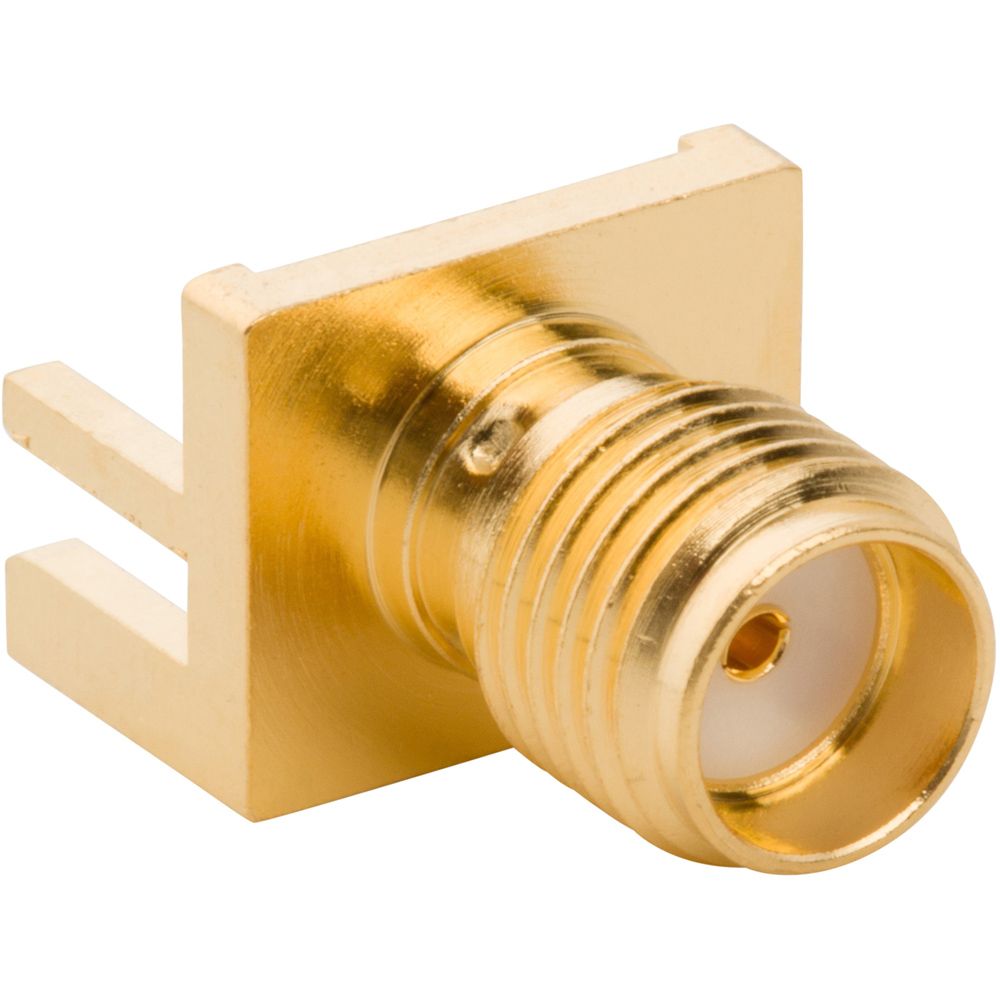

RF coaxial connector, SMA series, featuring a straight, edge mount, right-angle receptacle. Operates from 0 Hz to 18 GHz with a 50 Ohm impedance. Constructed with a brass body and copper center contact, both plated in gold. Dielectric is PTFE, and the connector offers 500 mating cycles with a maximum operating temperature of 165°C. RoHS compliant.
Frequency18GHz
PackageSMA
MountingEdge, Board
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 901-10003 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 14.24mm |
| Dielectric Material | PTFE |
| Frequency | 18GHz |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Length | 9.5mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Edge, Board |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-10003 Datasheet
Download the complete datasheet for Amphenol 901-10003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
