RF coaxial connector, SMA series, male gender, straight orientation, designed for edge mounting on 0.062-inch thick boards. Features 50 Ohm impedance, operating frequency range of 0 to 3 GHz, and a maximum frequency of 3 GHz. Constructed with brass body and contact material, both plated in gold, and a PTFE dielectric. Offers bulkhead and panel mount options with solder termination, rated for 100 mating cycles and IP67 waterproof/dust-tight protection.
Frequency3GHz
PackageSMA
MountingBulkhead, Panel, Edge, Board
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 901-10387 technical specifications.
General
| Board Thickness | 0.062inch |
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 3GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Bulkhead, Panel, Edge, Board |
| Operating Frequency | 0 to 3 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Polarity | Standard |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-10387 Datasheet
Download the complete datasheet for Amphenol 901-10387 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

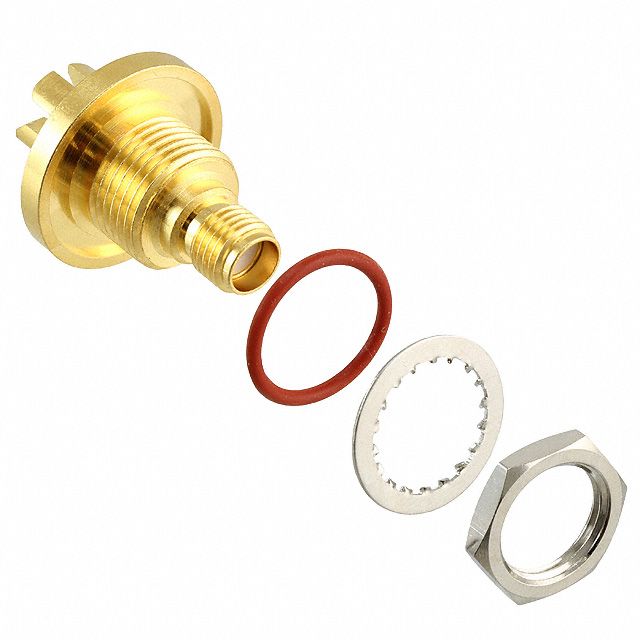

Product Images
