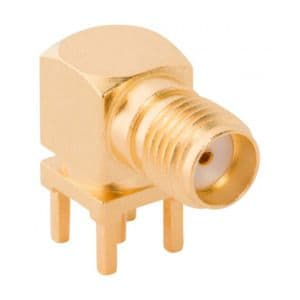

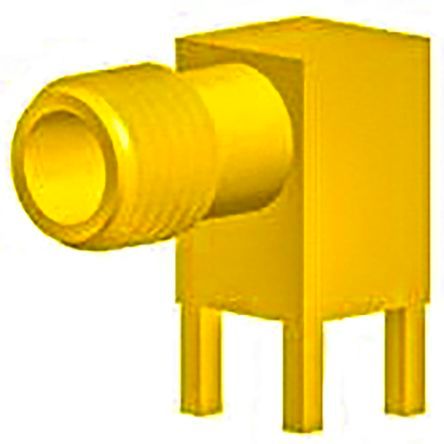

RF coaxial connector, SMA female, right angle, through-hole mount for PCB termination. Features 50 Ohm impedance, operating frequency range of 0 to 18 GHz, and gold-plated brass body with gold-plated copper center contact. Dielectric is PTFE, with a maximum operating temperature of 165°C and a mating cycle rating of 500. RoHS compliant and lead-free.
Frequency18GHz
PackageSMA
MountingThrough Hole, PCB
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 901-143-6RFX technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 7mm |
| Dielectric Material | PTFE |
| Frequency | 18GHz |
| Gender | Female |
| Height | 9.53mm |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 14.4mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, PCB |
| Number of Ports | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Right Angle |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
