Technical Specifications
Amphenol 901-9033 technical specifications.
General
| Body Material | Stainless Steel |
| Package/Case | SMA |
| Contact Material | Copper, Brass |
| Contact Plating | Gold |
| Dielectric Material | TFE |
| Impedance | 50R |
| Max Frequency | 4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Passivated |
| Polarity | Normal |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Between Series Adapter |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-9033 Datasheet
Download the complete datasheet for Amphenol 901-9033 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

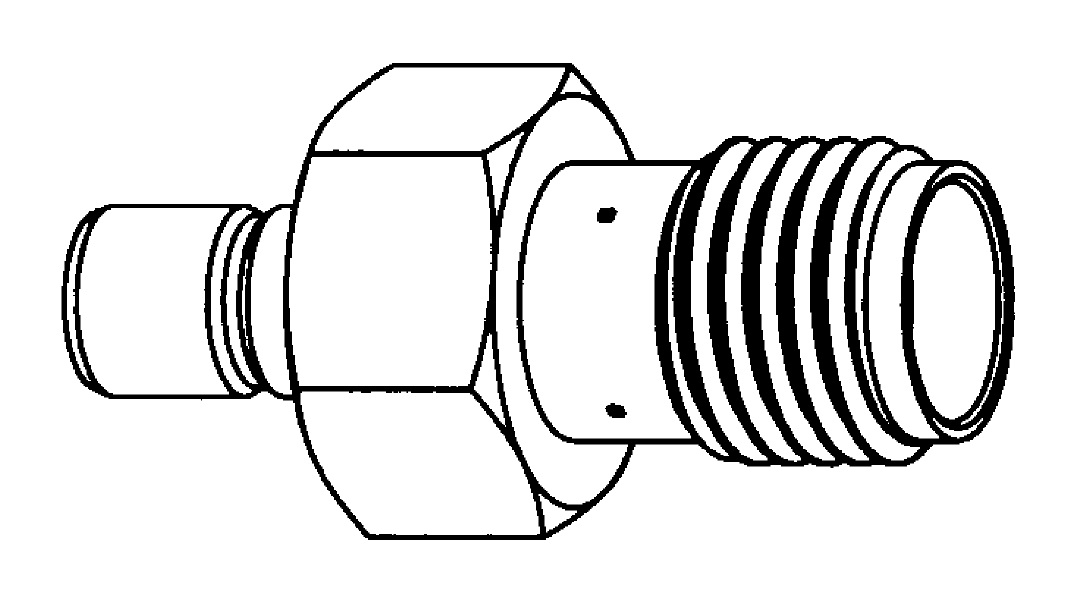

Product Images
