RF coaxial connector, SMA series, straight orientation, panel mount with rear side nut. Features 50 Ohm impedance and operates from 0 to 18 GHz. Constructed with a stainless steel body and PTFE dielectric, both center and contact materials are copper with gold plating. Maximum operating temperature is 165°C, with a mating cycle rating of 100. RoHS compliant.
Frequency12.4GHz
PackageSMA
MountingPanel, Bulkhead, Rear Side Nut
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 901-9842 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 12.4GHz |
| Housing Color | Silver |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 12.4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Panel, Bulkhead, Rear Side Nut |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-9842 Datasheet
Download the complete datasheet for Amphenol 901-9842 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

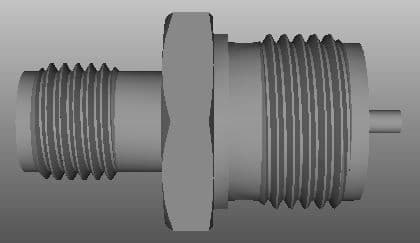

Product Images
