RF coaxial connector, SMA male, cable mount, solder termination. Features 50 Ohm impedance and operates from 0 to 18 GHz, with a maximum frequency of 18 GHz. Constructed with a brass body and center contact, both gold-plated for enhanced conductivity. Utilizes PTFE dielectric material and offers a temperature range of -65°C to 165°C. This connector supports 500 mating cycles and is RoHS compliant.
Frequency18GHz
PackageSMA
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 901-9867-RFX technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 8mm |
| Dielectric Material | PTFE |
| Frequency | 18GHz |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 11.2mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-9867-RFX Datasheet
Download the complete datasheet for Amphenol 901-9867-RFX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

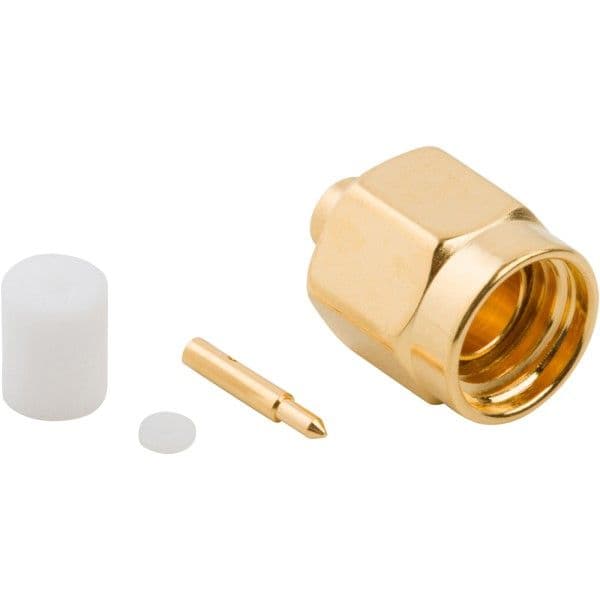

Product Images
