RF SMA connector, male, right angle, cable mount, featuring a brass body with gold plating and a gold-plated brass center contact. This connector utilizes PTFE dielectric material for reliable performance up to 12.4 GHz, with a 50 Ohm impedance. Designed for solder termination, it offers a voltage rating of 500V and a wide operating temperature range from -65°C to 165°C. The connector is RoHS compliant and rated for 100 mating cycles.
Frequency12.4GHz
PackageSMA
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 901-9873 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 12.4GHz |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 17.1mm |
| Mating Cycles | 100 |
| Max Frequency | 12.4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-9873 Datasheet
Download the complete datasheet for Amphenol 901-9873 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

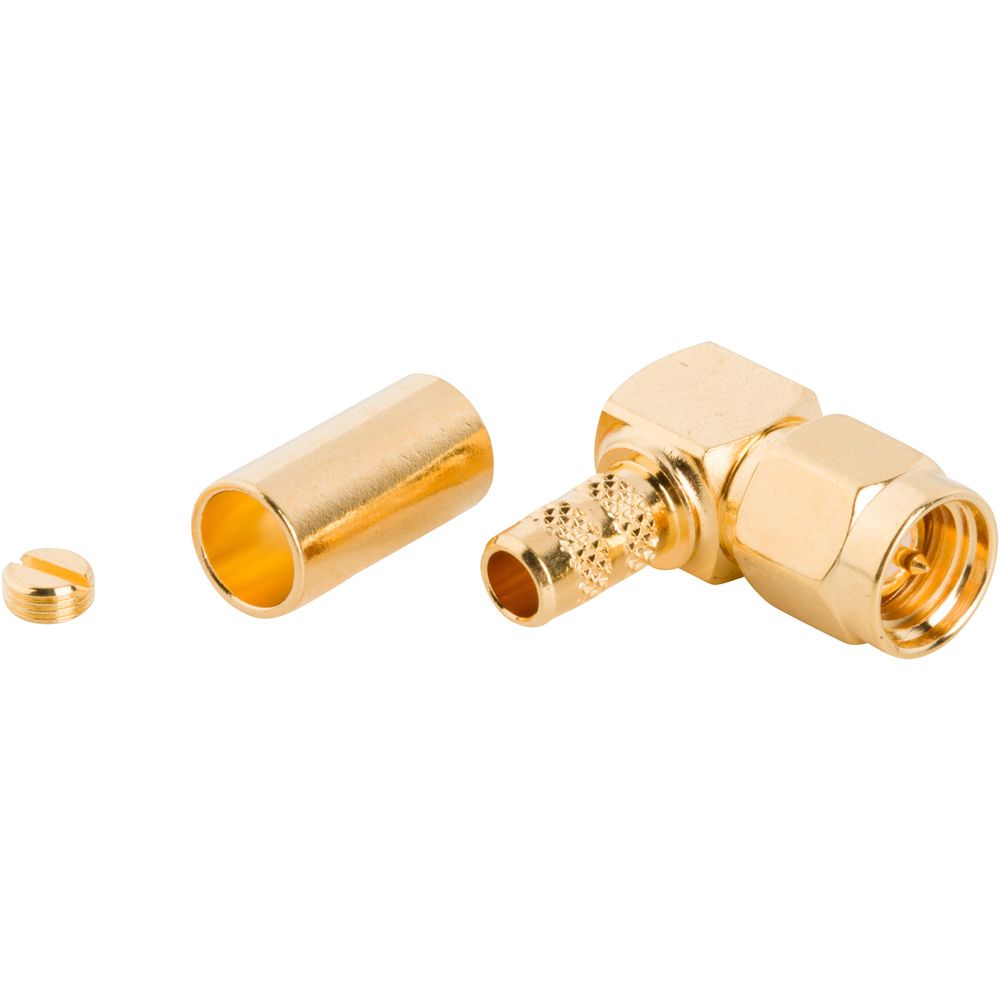

Product Images
