RF SMA connector, male, cable mount, straight orientation, featuring a brass body with nickel plating and a gold-plated brass center contact. This connector offers a 50 Ohm impedance and operates up to 12.4 GHz, with a maximum operating temperature of 165°C. It utilizes PTFE dielectric material and a crimp solder terminal for termination.
Frequency12.4GHz
PackageSMA
Voltage Rating375V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 901-9877-RFX technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 8mm |
| Dielectric Material | PTFE |
| Frequency | 12.4GHz |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 19.8mm |
| Mating Cycles | 100 |
| Max Frequency | 12.4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Nickel |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 375V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-9877-RFX Datasheet
Download the complete datasheet for Amphenol 901-9877-RFX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

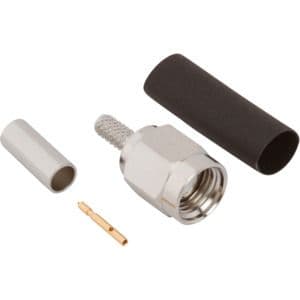

Product Images
