RF coaxial connector, SMA series, straight orientation, panel mount bulkhead with front side nut. Features 50 Ohm impedance, operating frequency from 0 to 12.4 GHz, and a maximum operating temperature of 165°C. Constructed with a stainless steel body, passivated body plating, and PTFE dielectric. Center and contact materials are copper with gold plating, ensuring reliable signal transmission.
Frequency12.4GHz
PackageSMA
MountingBulkhead, Panel, Front Side Nut
PolarityReverse
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Amphenol 901-9990 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Amphenol 901-9990 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Passivated |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 12.4GHz |
| Housing Color | Silver |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 12.4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Bulkhead, Panel, Front Side Nut |
| Operating Frequency | 0 to 12.4 GHz |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Plating | Passivated |
| Polarity | Reverse |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SMA |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 901-9990 Datasheet
Download the complete datasheet for Amphenol 901-9990 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

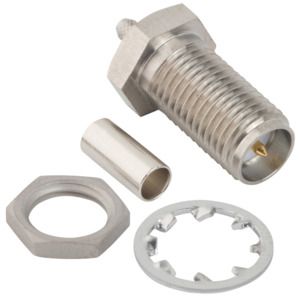

Product Images
