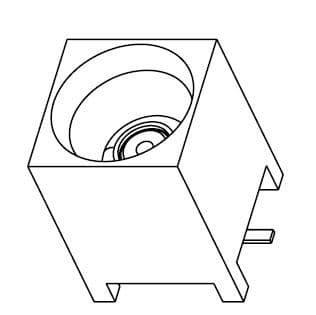

This surface mount RF connector features a gold plated body and center contact, with a gold plated housing and copper contact material. It has a maximum operating temperature range of -35°C to 85°C and can withstand up to 100 mating cycles. The connector has a 50R impedance and a maximum frequency of 3GHz, making it suitable for high-frequency applications. It is available in tape and reel packaging and has a standard polarity.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol 902-9024 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Body Plating | Gold |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | Nylon |
| Housing Color | Gold |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 3GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Mount | Surface Mount, PCB |
| Number of Ports | 1 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Polarity | Standard |
| Termination | Solder |
| RoHS | Compliant |
Download the complete datasheet for Amphenol 902-9024 to view detailed technical specifications.
