Right angle, male RF coaxial connector designed for cable mounting. Features a brass body with gold plating and a PTFE dielectric. Offers 50 Ohm impedance and operates up to 6 GHz with 500 mating cycles. Termination is via solder, and it supports a temperature range of -65°C to 165°C.
Frequency6GHz
Package908
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 908-43300 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | 908 |
| Center Contact Plating | Gold |
| Contact Material | Brass, Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 6GHz |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 7.01mm |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
| Weight | 0.026526oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 908-43300 Datasheet
Download the complete datasheet for Amphenol 908-43300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

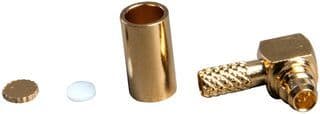

Product Images
