Right-angle RF connector for cable mounting, featuring a male plug with a solder terminal and locking mechanism. Constructed with a brass body and center contact, both plated in gold, and a PTFE dielectric for optimal performance up to 6 GHz. Offers 50 Ohm impedance and a mating cycle rating of 500, with an operating temperature range of -65°C to 165°C.
Frequency6GHz
Package908
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 908-43600 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | 908 |
| Center Contact Plating | Gold |
| Contact Material | Brass, Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 6GHz |
| Housing Color | Gold |
| Impedance | 50R |
| Insulation Material | Teflon |
| Length | 0.09inch |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Right Angle |
| Package Quantity | 25 |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MicroMate™ |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 908-43600 Datasheet
Download the complete datasheet for Amphenol 908-43600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

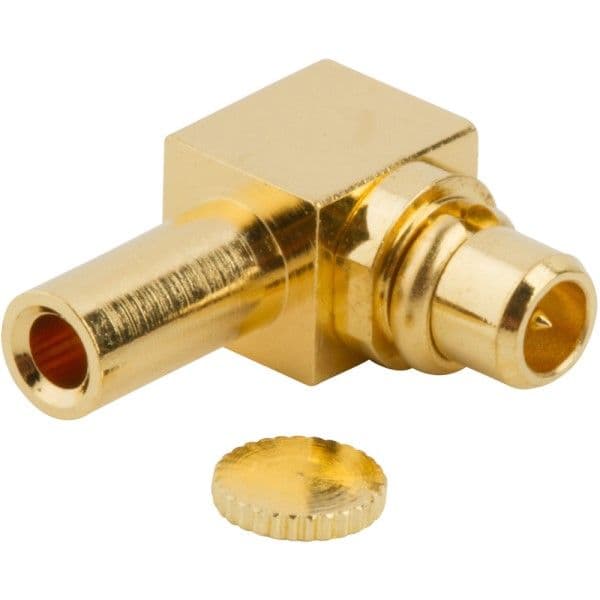

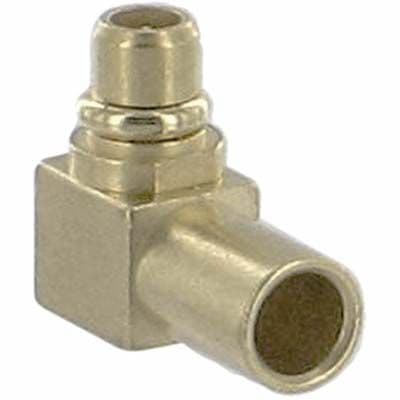

Product Images
