6-position, 2-row female socket receptacle with 2mm pitch, designed for straight, surface mount termination. Features gold-plated copper contacts and a black housing, operating across a temperature range of -55°C to 125°C with a maximum voltage rating of 200V AC. This lead-free, RoHS compliant component is supplied in a tube of 100 units.
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol 91596-106LF technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Depth | 4mm |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 5.92mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 200V |
| Mount | Surface Mount |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | Minitek® MezzSelect™, Basics+ |
| Termination | Solder |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 91596-106LF Datasheet
Download the complete datasheet for Amphenol 91596-106LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

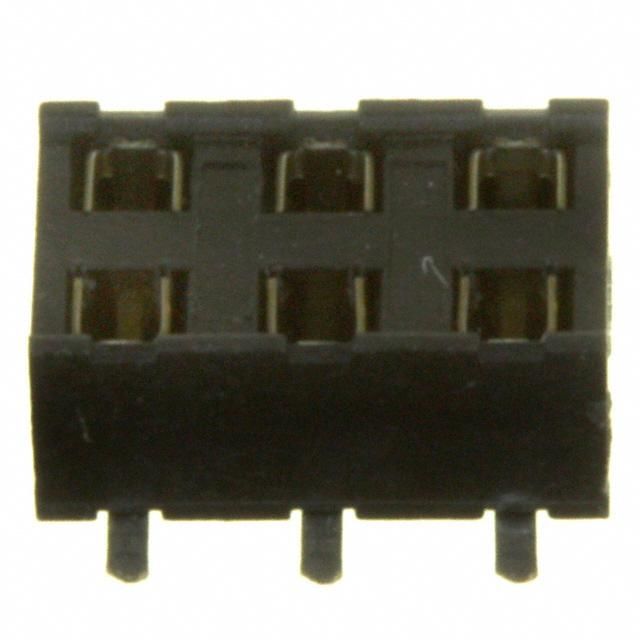

Product Images
