RF MCX connector, female, board mount, straight orientation, with a 50 Ohm impedance and a maximum operating frequency of 6 GHz. Features brass body with gold plating, copper center contact with gold plating, and PTFE dielectric. Designed for solder termination, offering 500 mating cycles and a maximum operating temperature of 155°C.
Frequency6GHz
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 919-109J-51PX technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 6mm |
| Dielectric Material | PTFE |
| Frequency | 6GHz |
| Gender | Female |
| Housing Color | Gold |
| Impedance | 50R |
| Insertion Loss | 0.1dB |
| Insulation Material | Polytetrafluoroethylene |
| Length | 6mm |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MicroMate™ |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 919-109J-51PX Datasheet
Download the complete datasheet for Amphenol 919-109J-51PX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

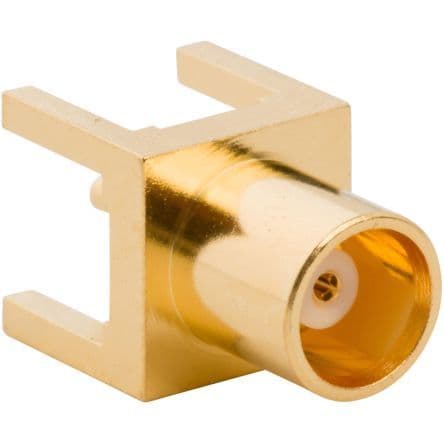

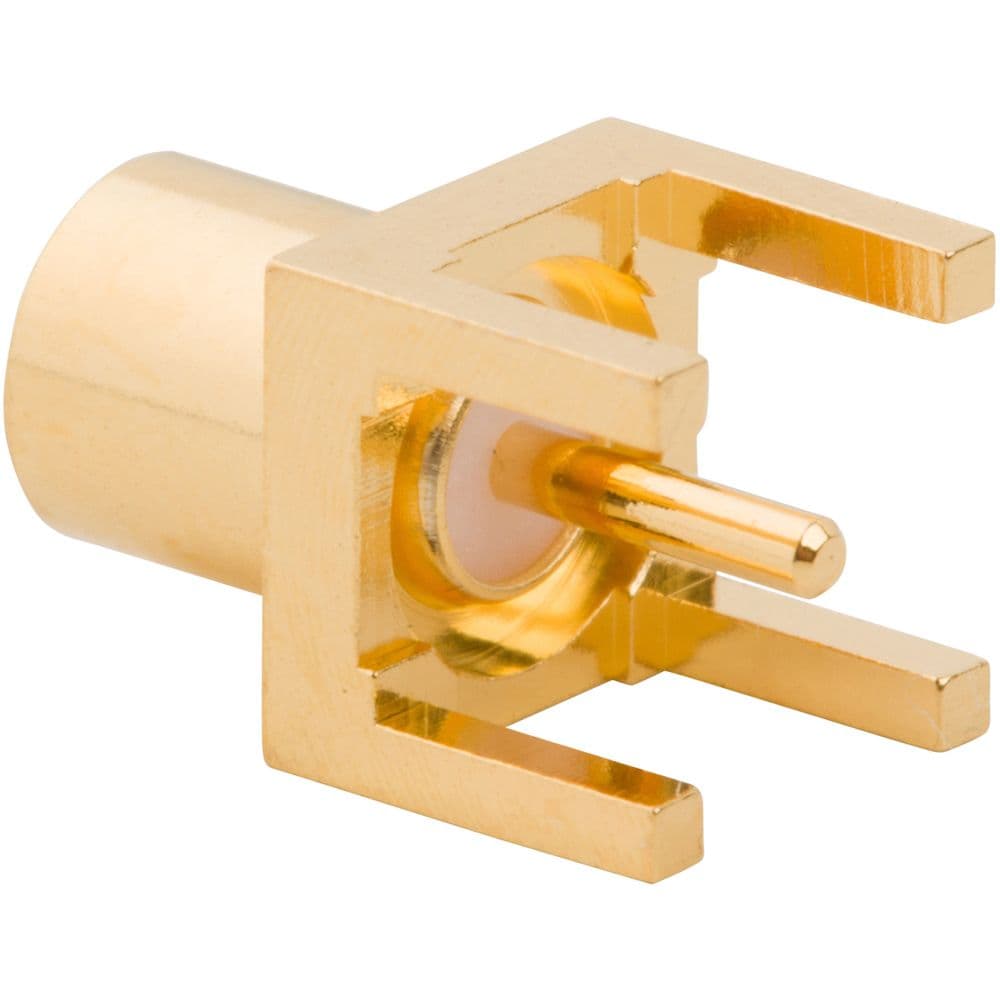

Product Images
