RF coaxial connector with straight, solder termination and through-hole mounting. Features a 50 Ohm impedance and operates from 0 Hz to 6 GHz. Constructed with a brass body and copper contacts, both plated in gold. Dielectric material is PTFE, and the connector offers a maximum operating temperature of 165°C. RoHS compliant.
Frequency6GHz
MountingSurface Mount, PCB, Through Hole
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Amphenol 920-264P-51P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Amphenol 920-264P-51P technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 6GHz |
| Housing Color | Gold |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount, PCB, Through Hole |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | AFI |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 920-264P-51P Datasheet
Download the complete datasheet for Amphenol 920-264P-51P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

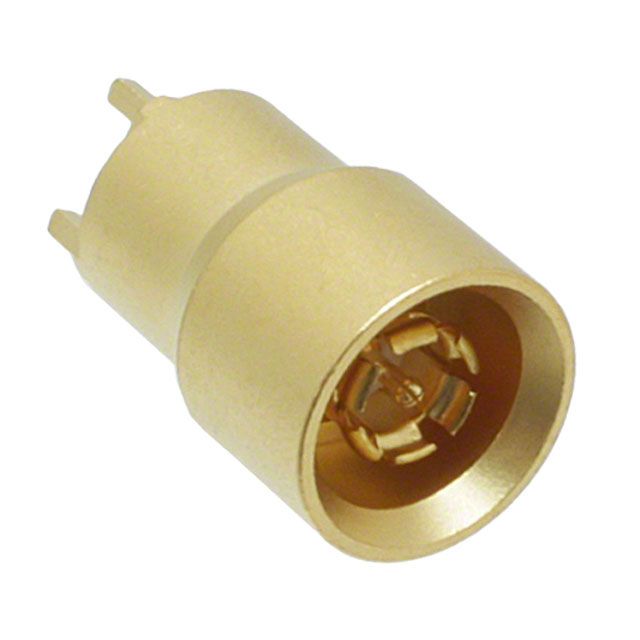

Product Images
