9-position, 9-pole male signal and power contact for solder termination. Features a copper alloy construction with silver plating for mating surfaces, rated for 13A current and 700V operating voltage. Designed for straight orientation within a size 20 shell, this unshielded component operates between -55°C and 125°C and supports wire gauges from 12AWG to 14AWG. Approvals include UL and CSA, with compliance to MIL-DTL-5015 standards.
Voltage Rating700V
Current Rating13A
Quick Jump:
Technical Specifications
Amphenol 97-20-16P technical specifications.
General
| Approvals | UL, CSA |
| Contact Finish - Mating | SILVER |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Contact Type | N/A |
| Current Rating | 13A |
| Gender | Male |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Number of Contacts | 9 |
| Number of Poles | 9 |
| Number of Positions | 9 |
| Operating Supply Voltage | 700V |
| Orientation | Straight |
| Plating | Zinc |
| Series | 97 |
| Shell Size | 20 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 700V |
| DC Rated Voltage | 700V |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 97-20-16P Datasheet
Download the complete datasheet for Amphenol 97-20-16P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

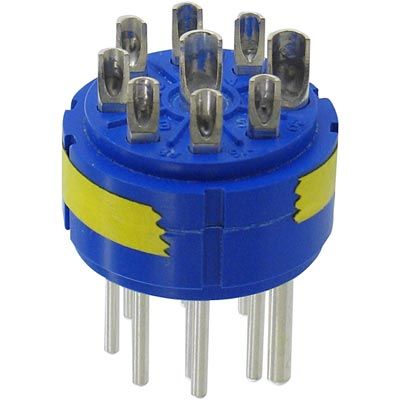

Product Images
