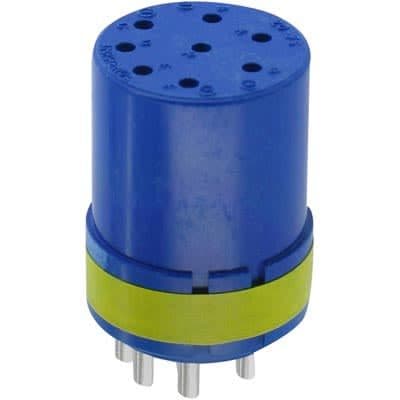

8-way female circular connector featuring socket contacts made from copper alloy with silver plating for mating. This general-purpose connector, part of the 97 series, offers a 13A current rating and a 1.25kV voltage rating, suitable for operating supply voltages up to 250V. It conforms to MIL-DTL-5015 military standards and is UL and CSA approved. The connector utilizes solder termination for wire gauges ranging from 16AWG to 22AWG.
Voltage Rating1.25kV
Current Rating13A
Quick Jump:
Technical Specifications
Amphenol 97-20-7S technical specifications.
General
| Approvals | UL, CSA |
| Contact Finish - Mating | SILVER |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Contact Type | Socket |
| Current Rating | 13A |
| Gender | Female |
| Military Standard | MIL-DTL-5015 |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Operating Supply Voltage | 250V |
| Packaging | Bulk |
| Plating | Zinc |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | 97 |
| Shell Size | 20 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 1.25kV |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 97-20-7S Datasheet
Download the complete datasheet for Amphenol 97-20-7S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
