Circular connector, 4-position, male receptacle with straight orientation. Features a 13A current rating and a 250V voltage rating (DC rated 250V). Constructed with an aluminum alloy shell and body, plated in cadmium and chromate. Contacts are brass/copper alloy with silver plating, designed for solder termination. Operates within a temperature range of -55°C to 125°C. Meets MIL-DTL-5015 military standard.
PackageMetal
Voltage Rating250V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 97-3101A-14S-2P technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Color | Green |
| Contact Gender | Male |
| Contact Material | Brass, Copper, Copper Alloy |
| Contact Plating | Silver |
| Contact Type | Pin |
| Current Rating | 13A |
| Gender | Receptacle |
| Insulation Material | Plastic |
| Lead Free | Contains Lead |
| Length | 37.39mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 250.2kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | 97 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 14 |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol 97-3101A-14S-2P Datasheet
Download the complete datasheet for Amphenol 97-3101A-14S-2P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

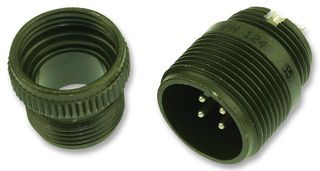

Product Images
