35-position, male pin circular connector with straight orientation and solder termination. Features a 32 shell size, aluminum body with cadmium plating, and copper alloy contacts with silver plating. Rated for a wide operating temperature range of -55°C to 125°C, meeting MIL-DTL-5015 standards. Designed for chassis or box mounting with a single port and bulk packaging.
PackageMetal
MountingChassis, Box
Quick Jump:
Technical Specifications
Amphenol 97-3102A-32-7P technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper, Brass |
| Contact Plating | Silver |
| Contact Type | Pin |
| Depth | 57.15mm |
| Gender | Receptacle |
| Length | 37.31mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Chassis, Box |
| Number of Contacts | 35 |
| Number of Ports | 1 |
| Number of Positions | 35 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 32 |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol 97-3102A-32-7P Datasheet
Download the complete datasheet for Amphenol 97-3102A-32-7P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

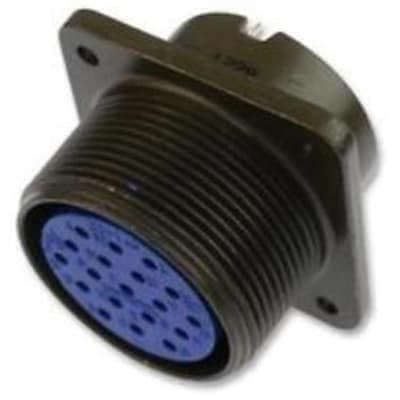

Product Images
