MIL Series circular connector, 5-position male plug with solder termination. Features a straight, free-hanging, cable mount design with a 14 shell size. Constructed from aluminum alloy with cadmium plating, it offers a 13A current rating and 250V voltage rating. Contacts are copper alloy with silver plating, suitable for wire gauges 22-16 AWG. Operating temperature range is -55°C to 125°C.
PackageMetal
Voltage Rating250V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications

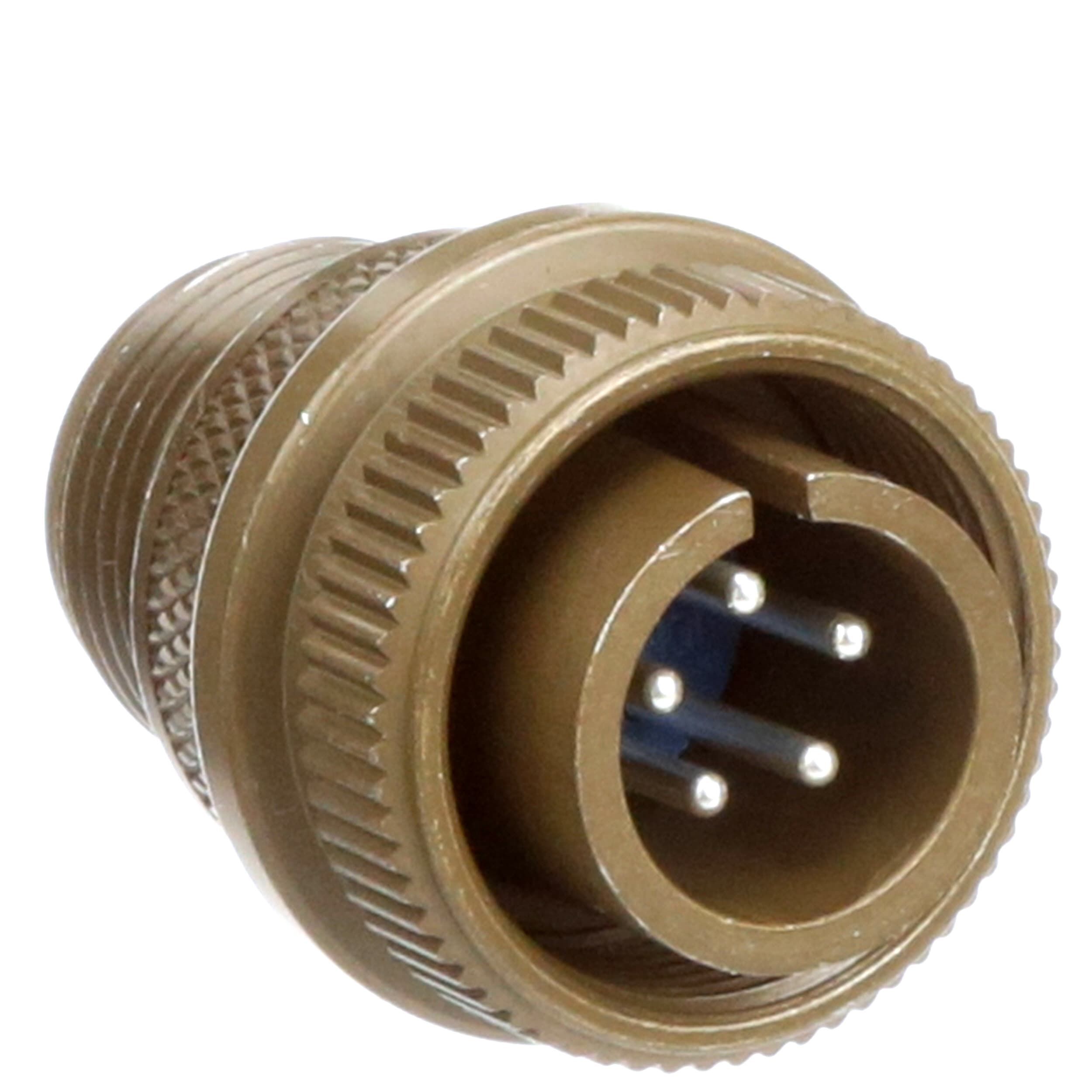

Amphenol 97-3106A-14S-5P technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | SILVER |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Silver |
| Contact Type | Pin |
| Current Rating | 13A |
| Gender | Male |
| Insulation Material | Plastic |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | 97 |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 14 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 22AWG |
Compliance
| RoHS | Not CompliantNo |
