Amphenol
97-3106A-14S-6P(639)
Circular Connector, 6 Pos, Male Pin, Solder, Straight, 13A, MIL-DTL-5015
Circular connector, 6-position male pin configuration with solder termination. Features a straight, cable mount orientation and a 13A current rating. Constructed with an aluminum shell and body, both plated in cadmium. Operating temperature range from -55°C to 125°C, meeting MIL-DTL-5015 standards.
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 97-3106A-14S-6P(639) technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper, Brass |
| Contact Plating | Silver |
| Contact Type | Pin |
| Current Rating | 13A |
| Length | 37.13mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Plating | Cadmium |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | 97 5015 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 14 |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 97-3106A-14S-6P(639) Datasheet
Download the complete datasheet for Amphenol 97-3106A-14S-6P(639) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

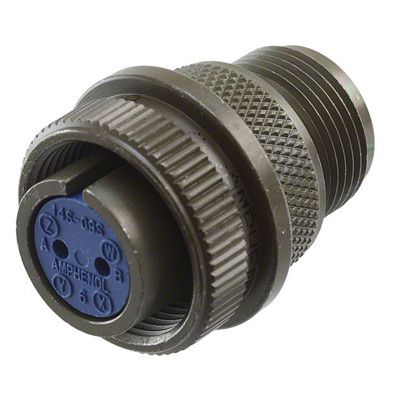

Product Images
