31-position, female socket circular connector with straight, cable mount orientation. Features copper alloy contacts with silver plating, a metal shell constructed from aluminum with cadmium plating, and a green color. Rated for 700V DC, operating between -55°C and 125°C, and compliant with MIL-DTL-5015 standards. Suitable for automotive and medical applications.
PackageMetal
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 97-3106A-36-9S technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | SILVER |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Contact Type | Socket |
| Gender | Female |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 31 |
| Number of Positions | 31 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | 97 |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 36 |
| Shielding | Unshielded |
| Termination | Solder |
| DC Rated Voltage | 700V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol 97-3106A-36-9S Datasheet
Download the complete datasheet for Amphenol 97-3106A-36-9S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

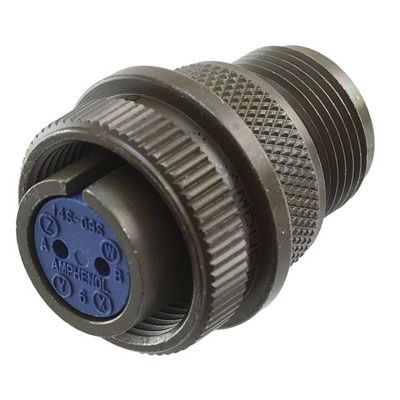

Product Images
