MIL Series Circular Connector, 4 Position, Male Plug with Solder Pin Contacts. Features a robust aluminum alloy shell with cadmium plating, rated for 13A and 250V. Operates across a wide temperature range of -55°C to 125°C, meeting MIL-DTL-5015 standards. Designed for free-hanging, cable mounting with a right-angle orientation and silver-plated copper alloy contacts.
PackageMetal
Voltage Rating250V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 97-3108B-14S-2P technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | SILVER |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Brass, Copper |
| Contact Plating | Silver |
| Contact Type | Pin |
| Current Rating | 13A |
| Depth | 28.58mm |
| Length | 53.16mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 97 |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 14 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 800mV |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol 97-3108B-14S-2P Datasheet
Download the complete datasheet for Amphenol 97-3108B-14S-2P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

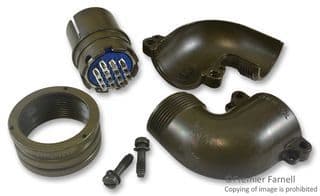

Product Images
